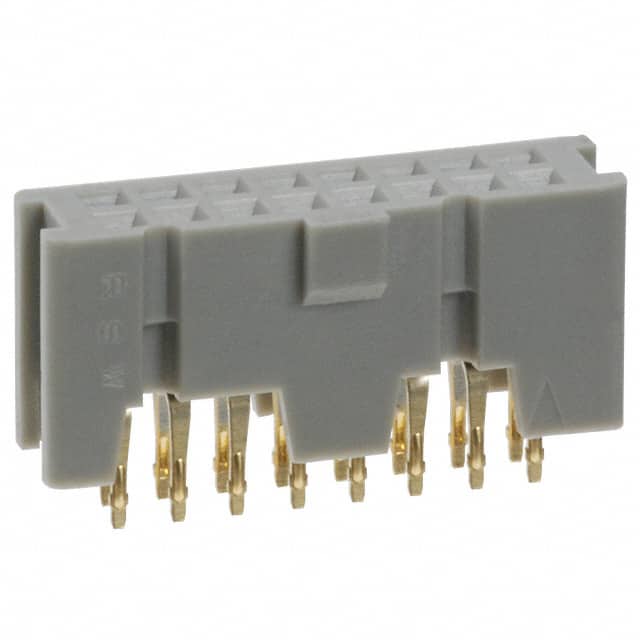

The 3M 8516-4500PL is a 16 position receptacle from the 8500 series, designed for board-to-board or cable applications. It features a 2.54mm pitch and row spacing, with a through hole mounting style and kinked pin solder termination for secure PCB retention during wave soldering.
The connector uses a glass filled polyester (PBT) insulator rated UL94 V-0, with a gray color and push-pull fastening type. Contacts are copper alloy with a 0.3µm gold wiping area and nickel underplating, rated for 1A current and 1000V withstanding voltage. Operating temperature range is -55°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.41 | $5.41 |
| 10+ | $4.60 | $4.60 |
| 100+ | $3.90 | $3.90 |
| 500+ | $3.48 | $3.48 |
| 1,000+ | $3.25 | $3.25 |
| 2,000+ | $3.03 | $3.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The current rating is 1 A.
The voltage rating is 1000 V, with a withstanding voltage of 1000 VRMS at sea level.
The mounting type is through hole with kinked pin solder termination.
The operating temperature range is -55°C to 105°C.
The contact finish is gold with a thickness of 0.30µm (12.0µin) over a nickel underplating of 2µm.
