| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style |

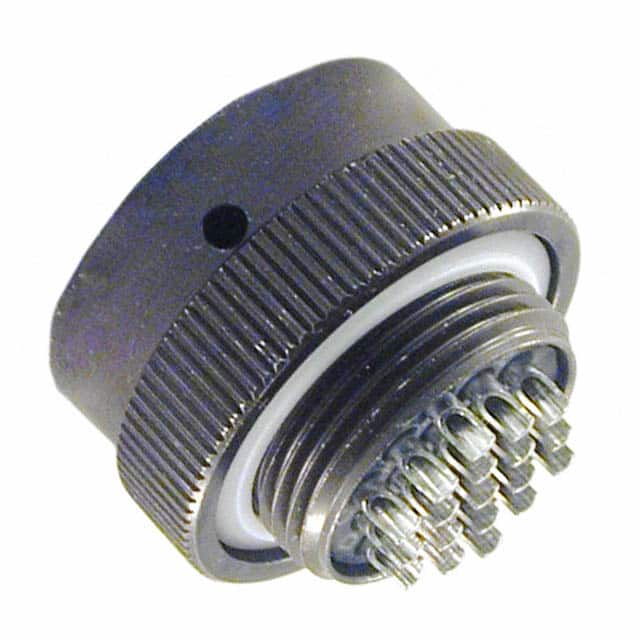

The 85106EC1419P50 is a circular connector plug from Souriau-Sunbank, part of the 851 series. It features 19 male pin contacts terminated via solder cup. The connector uses a bayonet lock for fast and secure mating. It is a free-hanging (in-line) design, suitable for cable applications. The shell is made of aluminum alloy with an olive green cadmium finish, providing durability and corrosion resistance. The contacts are gold-plated for reliable electrical connections. The connector is rated for 7.5 A per contact and has an operating temperature range of -55°C to 125°C. It is shielded and includes a cable clamp and coupling nut. Ingress protection is IP65, making it dust-tight and water-resistant. The material flammability rating is UL94 HB. This connector is commonly used in industrial, military, and aerospace applications where robust connections are required. The solder cup termination allows for easy field wiring. The bayonet lock ensures quick disconnect and secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $93.86 | $93.86 |
| 10+ | $82.32 | $82.32 |
| 30+ | $68.43 | $68.43 |
| 50+ | $67.34 | $67.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
19 positions.
7.5 A per contact.
Free hanging (in-line).
IP65 - dust tight and water resistant.
Aluminum alloy with olive green cadmium finish.
-55°C to 125°C.
Bayonet lock.
