| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Failure Rate | |
| Number of Contacts | |
| Orientation | |
| Shell Plating | |
| Shell Size | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style |

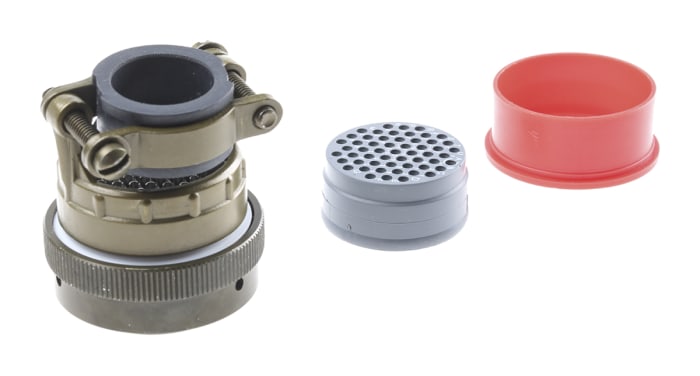

The Souriau Sunbank by Eaton 85106EC2255S50 is a MIL Spec Circular Connector from the 851 series. It offers 55 contacts and a current rating of 7.5A, suitable for various applications.
This connector is designed for cable mounting and features a robust bayonet mating type for secure connections. The operating temperature range is from -55°C to 125°C, ensuring reliability in demanding environments. The contact material is copper alloy with gold plating, and the shell is plated with olive drab cadmium.
Termination is achieved via solder contacts, compatible with cable cross-sections from 0.21 to 0.93 mm² (24-18 AWG). It adheres to the MIL-DTL-26482 military standard, making it suitable for applications requiring high reliability and performance.
Key specifications include a shell size of 22 and a straight orientation. The connector gender is male, while the contact gender is female.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 85106EC2255S50 connector has 55 contacts.
The current rating for this connector is 7.5A.
The operating temperature range is from -55°C to 125°C.
It uses a bayonet mating type.
This connector complies with the MIL-DTL-26482 military standard.
The termination type is solder.
