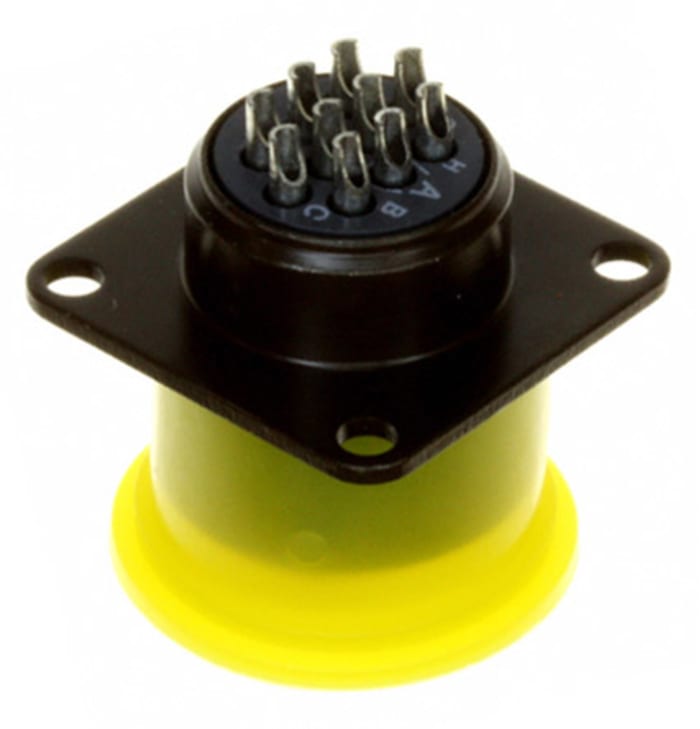

851-02E12-10S The 851-02E12-10S is a 10-way MIL spec circular connector manufactured by Souriau-Sunbank by Eaton. It features copper alloy contacts with gold plating and a cadmium shell plating, suitable for military and civil applications.
Mfr Part #:

851-02E12-10S

Available from 1 distributors
Mfr Name: Souriau-Sunbank by Eaton
Souriau-Sunbank by Eaton
The 851-02E12-10S is a 10-way MIL spec circular connector manufactured by Souriau-Sunbank by Eaton. It features copper alloy contacts with gold plating and a cadmium shell plating, suitable for military and civil applications.
✓ Total Stock: 5 pcs
$ Price Range: $1.00

851-02E12-10S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

851-02E12-10S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Contact Plating
Current
Material
Number of Contacts
Shell Plating
Shell Size
Voltage
View Similar Products (0)

851-02E12-10S Description

Short technical summary and product information.

The 851-02E12-10S is a MIL spec circular connector designed for reliable electrical connections in demanding environments. Manufactured by Souriau-Sunbank by Eaton, it features a copper alloy contact material with gold plating for corrosion resistance and a cadmium-plated aluminium alloy shell for durability. The connector has 10 contacts rated for 7.5A at 200V ac, with a straight bayonet mount for secure mating. It is suitable for applications in civil and military aviation, robotics, factory automation, and medical equipment. The connector is available with solder termination and complies with military standards MIL-C-26482 G Series I.

851-02E12-10S Quick Information

Product Type: Circular Connector
Canonical Name: Souriau Sunbank by Eaton 851 Series 10 Way Copper Alloy MIL Spec Circular Connector

851-02E12-10S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 Unlimited
REACH Status: REACH Unaffected

851-02E12-10S Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

851-02E12-10S Features

  • 10 contacts rated for 7.5A at 200V
  • Copper alloy contacts with gold plating
  • Cadmium-plated aluminium shell
  • Straight bayonet coupling mechanism
  • MIL-C-26482 G Series I compliance

851-02E12-10S Applications

  • Used in military and civil aviation
  • Suitable for robotics and automation
  • Ideal for medical equipment connections
  • Reliable in harsh environments

851-02E12-10S FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating of the 851-02E12-10S?

The current rating is 7.5A.

What is the voltage rating of the 851-02E12-10S?

The voltage rating is 200V ac.

What is the shell size of the connector?

The shell size is 12.

What material is used for the housing?

The housing is made of aluminium alloy.

What is the contact material and plating?

Contacts are copper alloy with gold plating.

Is the connector RoHS compliant?

Yes, it is RoHS3 compliant.
