| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Air Flow | |
| Airflow Direction | |
| Approval Agency | |
| Automotive Grade | |
| Bearing Type | |
| Cable | |
| Direction of Rotation | |
| Fan Type | |
| Frequency | |
| Grounding Lug | |
| Housing Material | |
| Impeller Material | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Motor Protection | |
| Noise | |
| Noise - Sound Power Level | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Service Life L10 (Minimum @ 40 °C) | |
| Service Life L10 (Minimum @ Maximum temperature) | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

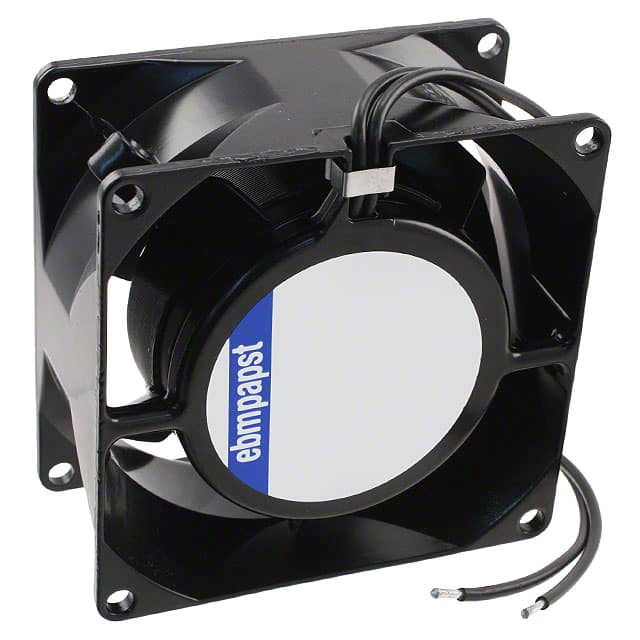

The Ebm-Papst 8500N is an AC tubeaxial fan with a compact 80 x 80 x 38mm frame. It operates at 115 VAC, 60 Hz, delivering 61 m³/h (35.9 CFM) of airflow at 3200 RPM. The fan features a die-cast aluminum housing and a painted sheet steel impeller.
The 8500N uses a Sintec sleeve bearing with an L10 service life of 55,000 hours at 40°C and 25,000 hours at maximum temperature. It is protected from overload by impedance protection and includes two AWG 18 wire leads and an M4 x 8 grounding lug.
Sound levels are rated at 34 dB(A) sound pressure and 4.8 B sound power. The fan is approved by CE, CSA, UL, and VDE.
| Qty | Low | High |
|---|---|---|
| 1+ | $42.41 | $42.41 |
| 10+ | $34.57 | $34.57 |
| 25+ | $34.05 | $34.05 |
| 48+ | $34.04 | $34.04 |
| 288+ | $33.17 | $33.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
115 VAC, 60 Hz.
-10°C to 75°C.
61 m³/h (35.9 CFM) free air airflow, 34 dB(A) sound pressure level.
Sintec sleeve bearing with L10 service life of 55,000 h at 40°C.
80 x 80 x 38 mm, weight 0.490 kg.
RoHS3 Compliant (unverified).
CE, CSA, UL, VDE.
