| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85,500 pcs
|
85500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

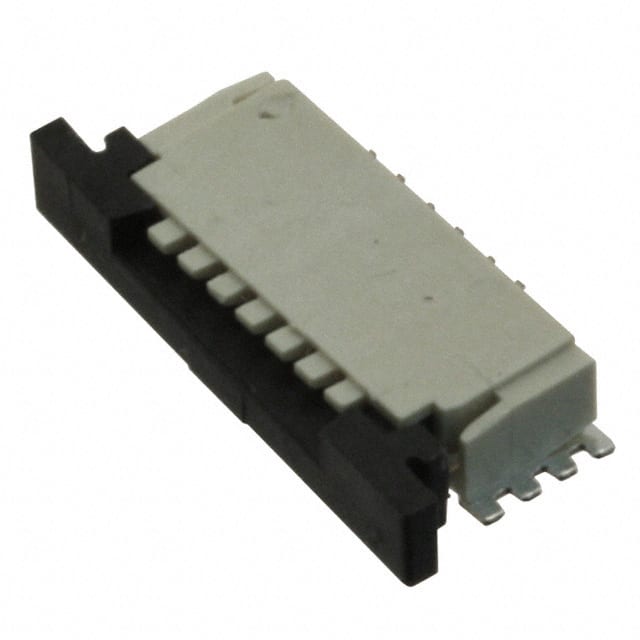

The TE Connectivity 84953-6 is a 6-position FPC (Flexible Printed Circuit) connector designed for reliable flat flex cable interconnections. It features a 1.00mm pitch and a surface mount, right angle mounting style, making it suitable for compact PCB layouts where space is at a premium. The connector uses top-side contacts and a straight cable end type, with a slide lock mechanism for secure cable retention. It incorporates Zero Insertion Force (ZIF) technology, allowing easy cable insertion without damaging the contacts, and solder retention features for robust mechanical attachment to the board. The housing is made from glass-filled Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and the actuator is glass-filled polyamide (nylon). Contacts are phosphor bronze with a tin finish. The connector accepts FPC cables up to 0.30mm thick and has a height above board of 2.56mm. It is rated for 200V and operates over a temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.85 | $0.85 |
| 25+ | $0.80 | $0.80 |
| 100+ | $0.77 | $0.77 |
| 250+ | $0.71 | $0.71 |
| 500+ | $0.66 | $0.66 |
| 1,000+ | $0.59 | $0.59 |
| 1,500+ | $0.59 | $0.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 84953-6 has 6 positions.
The pitch is 1.00mm.
Surface mount, right angle.
200V.
-40°C to 85°C.
Yes, it has a slide lock.
Phosphor bronze contacts with tin finish.
