| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,500 pcs
|
10500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,489 pcs
|
1489 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
132 pcs
|
132 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

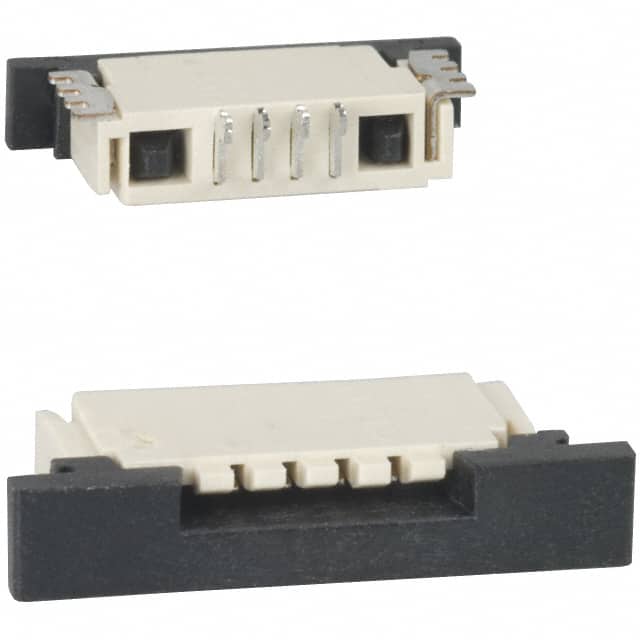

The TE Connectivity 84953-4 is a 4-position FPC connector with a 1.00mm (0.039 inch) pitch. It features a surface mount, right-angle mounting style with top-side contacts and a straight cable end type.
The connector includes a slide lock for secure cable retention and zero insertion force (ZIF) actuation, simplifying assembly. Solder retention features aid in reliable PCB mounting. Contacts are made of phosphor bronze with a tin finish, and the housing is liquid crystal polymer (LCP) with glass filling, rated UL94 V-0.
It accepts FPC cables up to 0.30mm thick and has a voltage rating of 200V. The operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.97 | $0.97 |
| 10+ | $0.87 | $0.87 |
| 25+ | $0.79 | $0.79 |
| 100+ | $0.75 | $0.75 |
| 250+ | $0.67 | $0.67 |
| 500+ | $0.54 | $0.54 |
| 1,000+ | $0.51 | $0.51 |
| 1,500+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm (0.039 inches).
It has 4 positions.
It is surface mount with a right-angle orientation.
The voltage rating is 200V.
