| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

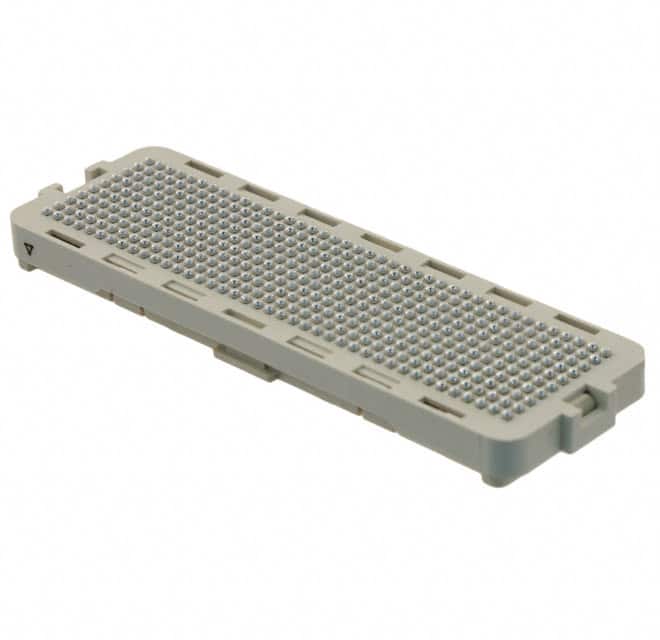

The Amphenol ICC 84740-102LF is a 400-position array connector designed for mezzanine board-to-board applications. It features a 1.27mm pitch and 10 rows of male pins, providing high-density interconnection. The connector is surface mount compatible and has a height above board of 0.132 inches (3.35mm). Contacts are gold plated with a thickness of 30 microinches, ensuring reliable electrical performance. The connector supports multiple mated stacking heights of 4mm, 6mm, and 8mm, offering flexibility in board spacing. It is RoHS3 compliant and has an MSL rating of 1 (unlimited). This connector is suitable for applications requiring high pin count and compact design.
| Qty | Low | High |
|---|---|---|
| 1+ | $32.88 | $32.88 |
| 10+ | $31.31 | $31.31 |
| 25+ | $31.03 | $31.03 |
| 50+ | $30.83 | $30.83 |
| 100+ | $30.63 | $30.63 |
| 250+ | $24.30 | $24.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
400 positions.
1.27mm (0.050").
Surface mount.
10 rows.
Gold with 30µin thickness.
4mm, 6mm, and 8mm.
RoHS3 compliant (unverified).
