| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Conductor Material | |
| Insulation Diameter | |
| Insulation Material | |
| Number of Conductors | |
| Operating Temperature |

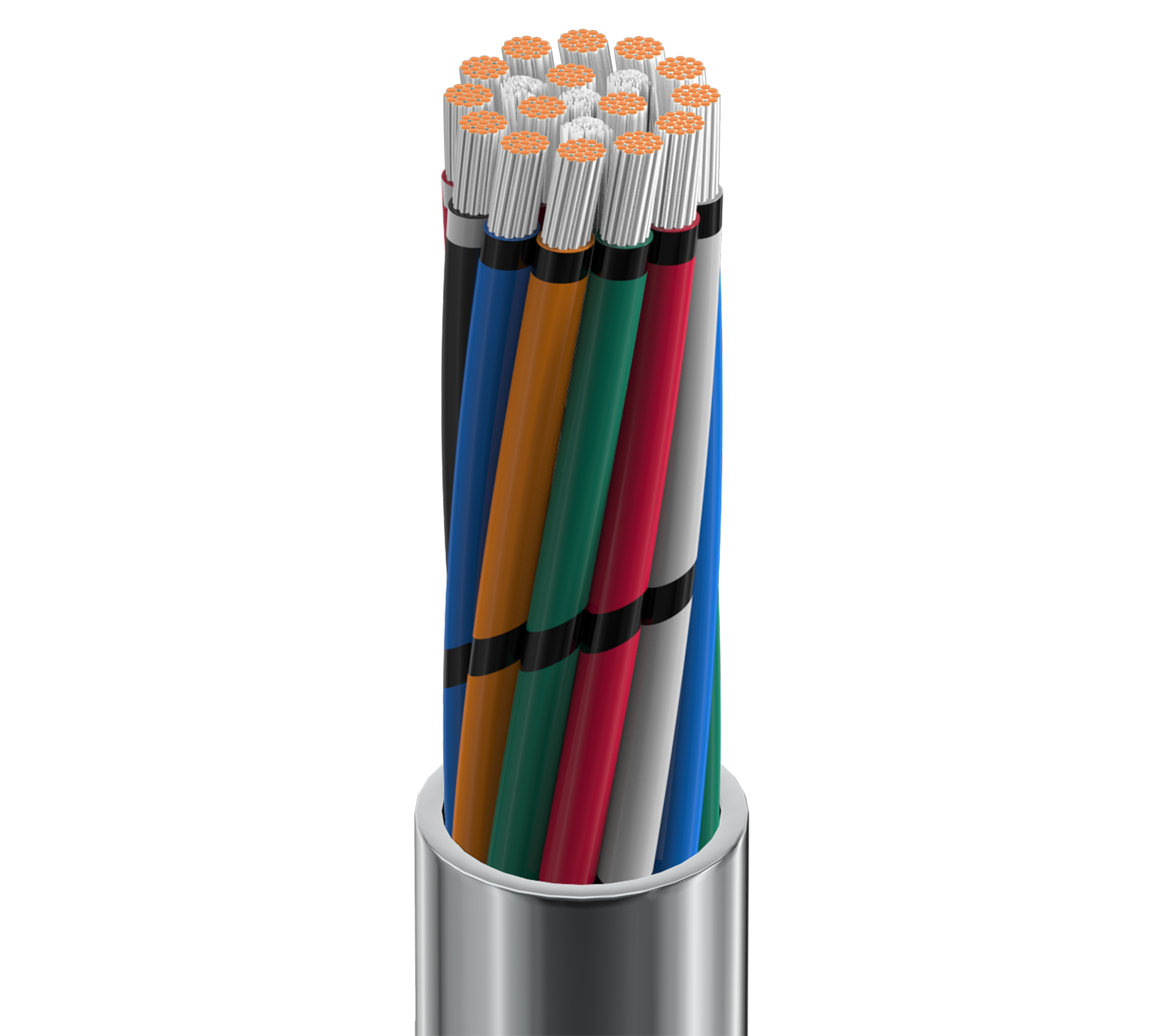

The Belden Inc. 8468 is a multi-conductor cable designed for electronic applications. It features 15 conductors, each 18 AWG with a 19x30 stranding of tinned copper. The insulation for each conductor is PVC, and the outer jacket is also PVC, providing durability.
This cable is rated for 300V and has an operating temperature range of -20°C to +60°C. Its construction meets UL 1685 FT4 loading and IEC 60332-1-2 standards for flammability. The overall cable diameter is 0.500 inches (12.7 mm).
Suitable applications include low voltage analog signals (4-20mA, 0-10V), low voltage control (24V), line level audio, voice communications, and panel wiring. It complies with NEC Article 800 CMG and AWM 2598 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Belden 8468 cable features 18 AWG conductors made of tinned copper.
The Belden 8468 cable has 15 conductors.
The Belden 8468 cable has a UL voltage rating of 300V.
The Belden 8468 cable has an operating temperature range of -20°C to +60°C.
Suitable applications include low voltage analog signals, low voltage control, line level audio, voice communications, and panel wiring.
The RoHS status for the Belden 8468 cable is listed as RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the Belden 8468 cable is 1 Unlimited.
