| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

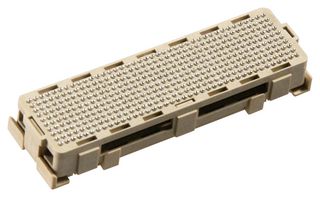

The Amphenol ICC 84520-102 is a high-density array connector designed for board-to-board mezzanine applications. It features 400 male pin positions arranged in 10 rows with a 1.27mm pitch, enabling compact and reliable interconnections.
This connector uses surface mount technology for efficient assembly and gold contact finish with 0.76µm thickness for reliable signal integrity and corrosion resistance. The mated stacking heights of 10mm, 12mm, and 14mm provide flexibility in board spacing.
With a height above board of 9.35mm, this connector is suitable for space-constrained designs requiring high pin count. The gold-plated contacts ensure low contact resistance and durability over repeated mating cycles.
| Qty | Low | High |
|---|---|---|
| 150+ | $24.82 | $24.82 |
| 450+ | $24.41 | $24.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
400 positions.
1.27mm (0.050").
Surface mount.
Gold with 0.76µm thickness.
10mm, 12mm, and 14mm.
