| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

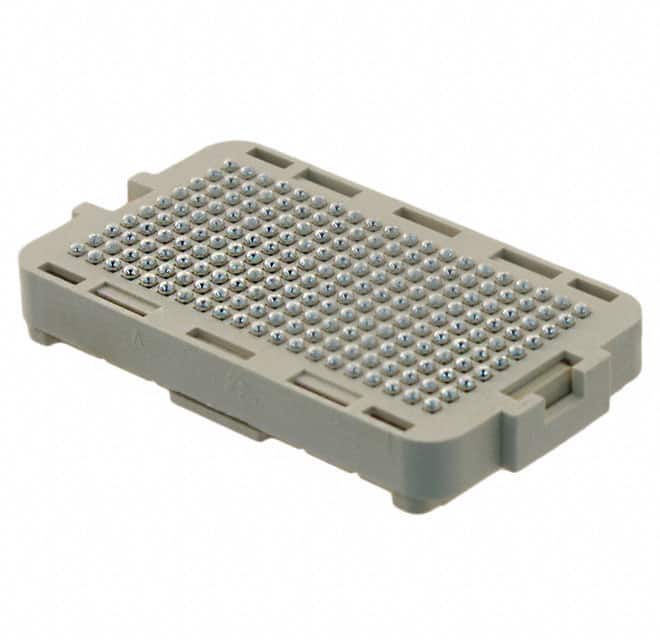

The 84516-102 is an array plug connector from Amphenol ICC designed for mezzanine (board-to-board) applications. It features 200 male pin positions arranged in 10 rows with a 1.27mm (0.050") pitch, enabling high-density interconnections in compact electronic assemblies.
The connector is surface mount compatible and has a height above board of 3.35mm (0.132"). It supports mated stacking heights of 4mm, 6mm, and 8mm, providing flexibility for various board spacing requirements. Contacts are finished with 30.0µin (0.76µm) gold for reliable signal integrity and corrosion resistance.
This component is suitable for use in applications requiring a large number of parallel signal paths between stacked PCBs. The surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 250+ | $10.49 | $10.49 |
| 500+ | $10.21 | $10.21 |
| 1,000+ | $9.37 | $9.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 84516-102 has 200 positions arranged in 10 rows.
The pitch is 1.27mm (0.050").
It uses surface mount (SMD) mounting.
The contact finish is gold with a thickness of 30.0µin (0.76µm).
Supported mated stacking heights are 4mm, 6mm, and 8mm.
