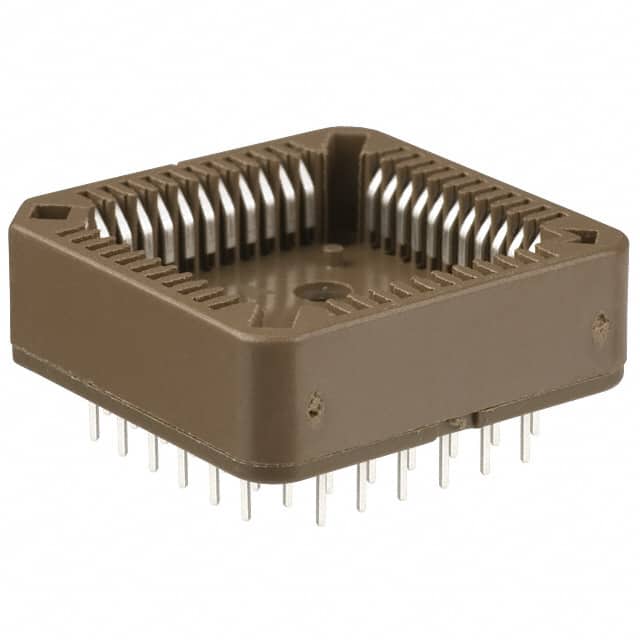

The 3M 8444-11B1-RK-TP is a 44-position PLCC socket from the 8400 series, designed for through-hole mounting with solder termination. It features a 2.54mm pitch and 1.27mm contact pitch, with 4 rows spaced at 12.7mm. The closed frame design accepts JEDEC MO-047 and MO-052 chip carriers and is compatible with automated loading equipment.
The socket is constructed with a glass-filled PBT housing rated UL94 V-0 and copper alloy contacts with a 160µin matte tin wiping area over 50µin nickel underplating. Electrical characteristics include contact resistance of 15mΩ, insulation resistance greater than 103MΩ, and capacitance less than 1pF at 1MHz. Operating temperature range is -40°C to 105°C.
This component is wave solder compatible but not suitable for reflow soldering. It is supplied in tube packaging with a quantity of 875. The open top design allows unrestricted air flow and molded slots facilitate device extraction. RoHS compliant per RIA E1 and C1.
44 positions.
2.54mm (0.100").
Through hole.
Tin, 160µin (4.06µm) over nickel underplating.
-40°C to 105°C.
Yes, RoHS3 compliant per datasheet (RIA E1 and C1 apply).
UL94 V-0.
