| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
166 pcs
|
166 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Failure Rate | |
| Features | |
| Flammability Rating | |
| Housing Material | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Pitch | |
| Process Temperature | |
| Termination | |
| Type | |
| Width |

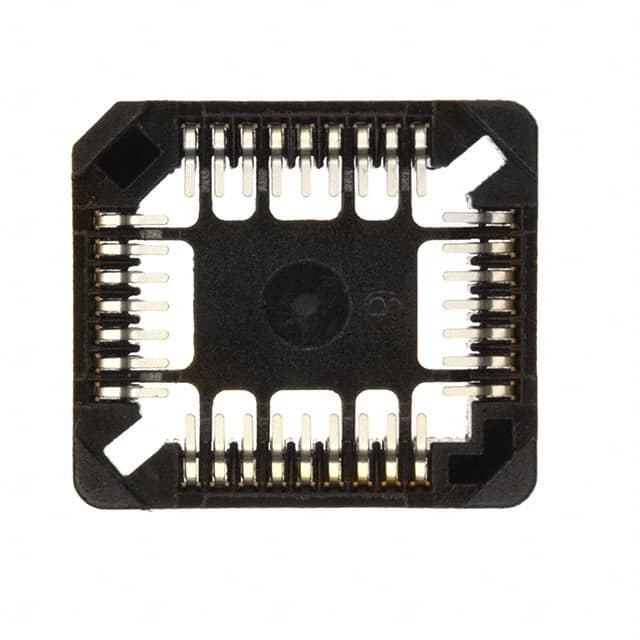

The 3M 8432-21B1-RK-TR is a 32-position PLCC socket from the 8400 series, designed for surface mount applications. It features a 1.27mm pitch and a straight orientation, utilizing copper alloy contacts with tin plating for reliable mating.
The socket is constructed with a glass-filled Polyphenylene Sulfide (PPS) insulator, rated UL 94V-0 for flammability. It operates within a temperature range of -40°C to 105°C and is compatible with process temperatures up to 260°C, suitable for reflow soldering processes.
This component is RoHS compliant and supplied in tape and reel packaging, making it suitable for automated assembly. The open top design allows for unrestricted airflow, and molded slots facilitate device extraction.
Key electrical specifications include a contact resistance of 15 mΩ and an insulation resistance greater than 103 MΩ. The capacitance is less than 1 pF at 1 MHz.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.28 | $2.28 |
| 450+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 8432-21B1-RK-TR is a PLCC socket.
This socket has 32 positions.
The pitch is 1.27mm (0.050").
The mounting type is Surface Mount.
It operates between -40°C and 105°C.
The flammability rating is UL 94V-0.
The contact resistance is 15 mΩ.
