| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,209 pcs
|
4209 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Input Type | |
| Main Purpose | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| PLL |
The Renesas 841S04CGILFT is a specialized clock/timing integrated circuit. It is designed to provide precise clock management for applications requiring high-speed data interfaces such as Ethernet, PCI Express (PCIe), and Serial RapidIO (sRIO).
This IC supports a maximum frequency of 250MHz and offers versatile input compatibility with LVCMOS, LVTTL, and Crystal signals. Its outputs include HCSL, LVCMOS, and LVTTL, providing flexibility for various system designs. The operating voltage range is from 3.135V to 3.465V, with an operating temperature range of -40°C to 85°C.

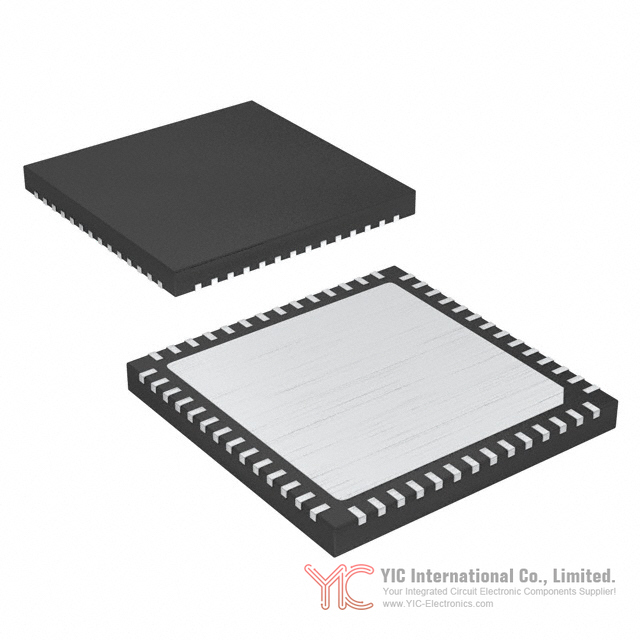

The 841S04CGILFT is available in a 56-VFQFPN (8x8) surface mount package, supplied in trays. Its design ensures reliable performance and superior data integrity for complex digital systems.
Key features include a PLL, an input/output ratio of 2:12, and support for differential signaling. This component is suitable for applications demanding robust and stable clock solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3.135V to 3.465V.
The operating temperature range is -40°C to +85°C.
Available packages are 56-VFQFPN (8x8) and 56-VFQFN Exposed Pad.
The maximum output frequency is 250 MHz.
The input to output ratio is 2:12.
It supports HCSL, LVCMOS, and LVTTL output types.
The intended applications are Ethernet, PCI Express, and sRIO.
