| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Height | |
| Housing Material | |
| Lead Style | |
| Length | |
| Noise | |
| Power (Watts) | |
| Sound Pressure Level (SPL) | |
| Speed | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

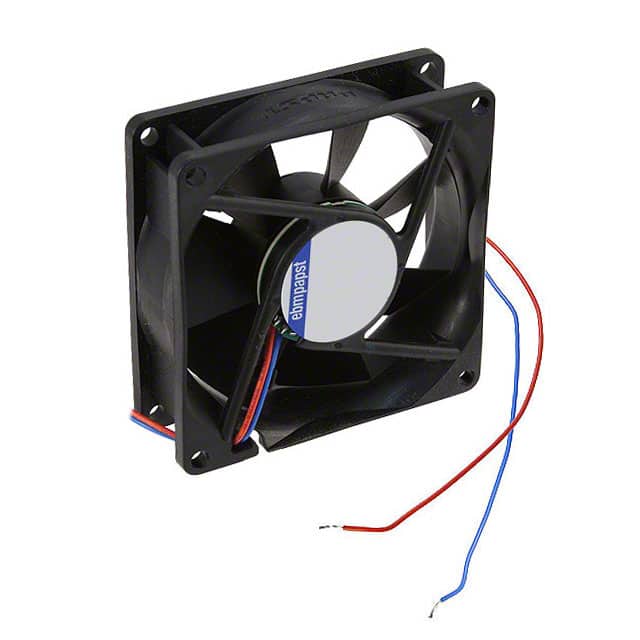

The Ebm-Papst 8412NGMI is a 12 VDC axial fan in the standard 80x80x25 mm form factor. It operates at a nominal voltage of 12 VDC with an allowable range of 8 to 14 VDC. The fan delivers 58 m³/h airflow at 2600 RPM and generates a sound pressure level of 26 dB(A) and sound power level of 4.3 B. Power consumption is 2.0 W. The housing is made of glass-fiber reinforced PBT plastic and the impeller of glass-fiber reinforced PA plastic. The bearing is a Sintec sleeve bearing with an L10 service life of 80,000 hours at 40°C and 45,000 hours at maximum ambient temperature (65°C). The fan includes reverse polarity and blocked rotor protection with partial impedance locked-rotor protection. It is approved by VDE, CSA, and UL. Termination is via two 24 AWG wire leads, stripped and tin-plated. Operating temperature range is -20°C to 65°C. Weight is 0.095 kg.
| Qty | Low | High |
|---|---|---|
| 1+ | $53.69 | $53.69 |
| 10+ | $47.62 | $47.62 |
| 25+ | $44.48 | $44.48 |
| 36+ | $44.32 | $44.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 to 14 VDC, with nominal 12 VDC.
80 mm x 80 mm x 25 mm, weight 0.095 kg.
-20°C to 65°C.
RoHS3 compliant (unverified).
Airflow 58 m³/h, sound pressure 26 dB(A).
VDE, CSA, UL.
