| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Type |

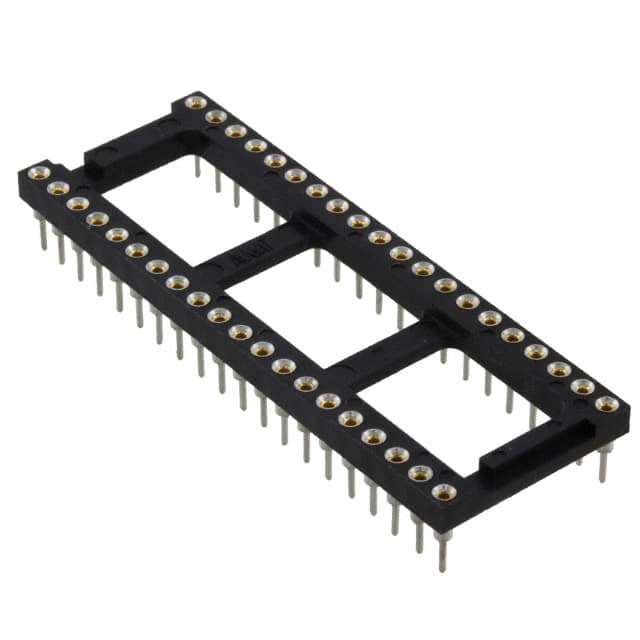

The 840-AG11D is a 40-position dual in-line (DIP) IC socket manufactured by TE Connectivity. It arranges the contacts in a 2x20 grid with 0.6" (15.24mm) row spacing and 0.100" (2.54mm) pin pitch, which is standard for 40-pin DIP ICs. The socket uses through-hole mounting with solder termination and is constructed with a polyester housing and copper alloy contacts plated with a Tin-Lead finish of 25.0µin (0.63µm).
The open frame design allows for easy cleaning and inspection of solder joints. The operating temperature range is -55°C to 105°C, making it suitable for a wide variety of industrial and commercial environments. This socket is intended for use in prototyping, production, and testing of 40-pin DIP integrated circuits.
No current rating, voltage rating, or datasheet are available for this part. Compliance claims (RoHS, REACH, MSL) are unverified and should be confirmed with the manufacturer or a qualified distributor.
| Qty | Low | High |
|---|---|---|
| 300+ | $7.55 | $7.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 40 positions arranged in a 2x20 grid.
The pitch is 2.54mm (0.100").
It uses through-hole mounting with solder termination.
The contact finish is Tin-Lead with a thickness of 25.0µin (0.63µm).
The operating temperature range is -55°C to 105°C.
The housing is made of polyester.
Yes, it features an open frame design.
