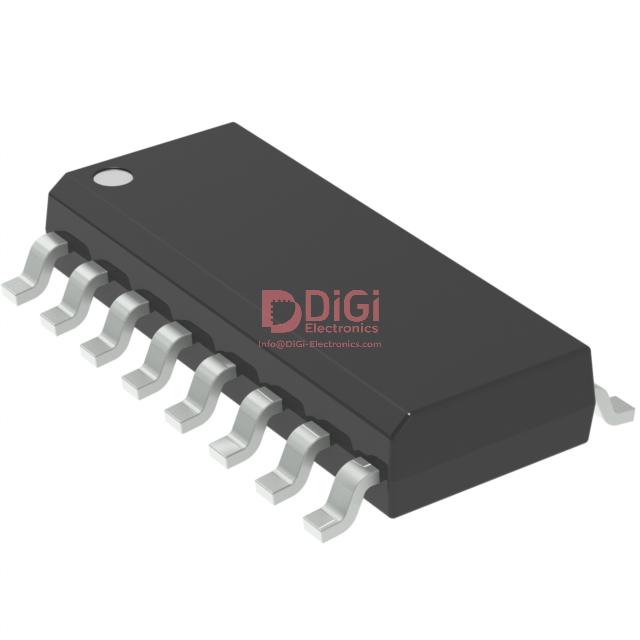

83905AMLFT The Integrated Device Technology 83905AMLFT is a clock fanout buffer designed for clock distribution applications. It features a 1:6 output ratio and operates at frequencies up to 100 MHz.
Mfr Part #:

83905AMLFT

Available from 1 distributors
Mfr Name: Integrated Device Technology
Integrated Device Technology
The Integrated Device Technology 83905AMLFT is a clock fanout buffer designed for clock distribution applications. It features a 1:6 output ratio and operates at frequencies up to 100 MHz.
✓ Total Stock: 74,952 pcs
$ Price Range: $0.99

83905AMLFT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
74,952 pcs
On Request
74952 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

83905AMLFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Type
Mounting Type
Number of Circuits
Operating Temperature
Output Type
Type
Voltage Supply
View Similar Products (0)

83905AMLFT Description

Short technical summary and product information.

The Integrated Device Technology 83905AMLFT is a clock fanout buffer designed to distribute clock signals efficiently. This component offers a 1:6 ratio, meaning one input signal can drive six outputs, making it suitable for systems requiring synchronized clocking.



Key electrical specifications include a maximum operating frequency of 100 MHz and a wide supply voltage range from 1.6V to 3.465V. The input supports LVCMOS, LVTTL, and Crystal signals, while the outputs are compatible with LVCMOS and LVTTL standards. The device operates within a temperature range of -40°C to 85°C.



Packaged in a 16-SOIC (0.154", 3.90mm Width) format, the 83905AMLFT is designed for surface mount applications. Its fanout buffer functionality is crucial for maintaining signal integrity across multiple clock distribution points in electronic designs.

83905AMLFT Quick Information

Product Type: Clock Buffer
Canonical Name: 83905AMLFT Clock Fanout Buffer
Subcategory: Clock Buffers, Drivers

83905AMLFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

83905AMLFT Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

83905AMLFT Features

  • 1:6 clock fanout buffer.
  • Operates up to 100 MHz.
  • Wide supply voltage range.
  • Supports multiple input/output standards.
  • Surface mount 16-SOIC package.

83905AMLFT Applications

  • Suitable for clock distribution in digital systems.
  • Used in high-speed signal buffering applications.
  • Ideal for timing circuits requiring 100 MHz frequency.
  • Applicable in electronic devices with surface-mount design.
  • Suitable for applications requiring low-voltage operation.

83905AMLFT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum frequency for the 83905AMLFT?

The maximum frequency for the 83905AMLFT is 100 MHz.

What is the supply voltage range for this clock buffer?

The supply voltage range for the 83905AMLFT is 1.6V to 3.465V.

What type of package is the 83905AMLFT in?

The 83905AMLFT is available in a 16-SOIC package with a width of 0.154 inches (3.90mm).

What are the input and output signal types supported?

The input supports LVCMOS, LVTTL, and Crystal signals, while the outputs are LVCMOS and LVTTL.

What is the operating temperature range?

The operating temperature range for the 83905AMLFT is -40°C to 85°C.
