| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Finish Thickness (@ Underplating) | |
| Contact Finish Thickness (Wiping Area) | |
| Contact Material | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Strain Relief Material | |
| Temperature Rating | |
| Termination | |
| Termination Style | |
| Wire Accommodation | |
| Withstanding Voltage |

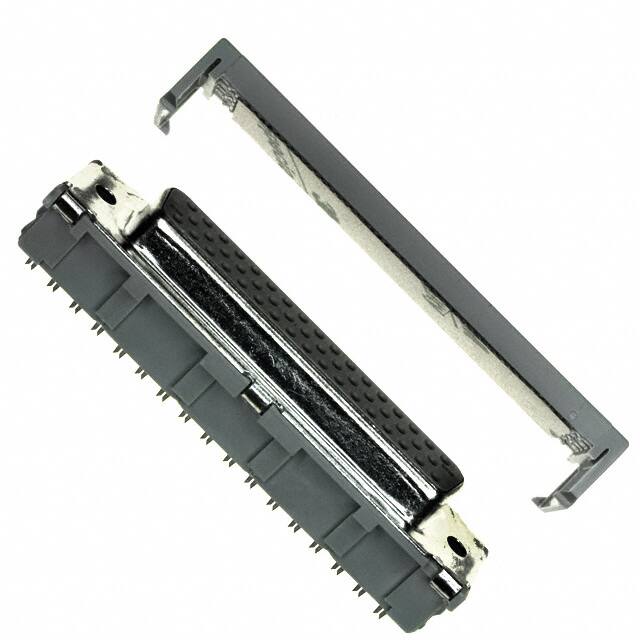

The 3M 8350-6005 is a 50-position D-Sub receptacle from the 8350 series. It features female sockets arranged in 3 rows and is designed for IDC termination with 26-28 AWG solid or stranded ribbon cable. The connector is panel mountable with a 4-40 UNC threaded flange. Contacts are made of copper alloy with gold plating on the wiping area (30 µin) and nickel underplating (100 µin). The shell is steel with tin plating, and the insulation is glass-filled polyester (PBT) rated UL94 V-0. This connector is suitable for applications requiring high-density I/O connections, such as intelligent peripheral interfaces (IPI). The 8350 series offers lower insertion and withdrawal force compared to other 50-position products. The operating temperature range is -55°C to +105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $40.27 | $40.27 |
| 10+ | $37.43 | $37.43 |
| 20+ | $36.43 | $36.43 |
| 60+ | $32.15 | $32.15 |
| 100+ | $30.14 | $30.14 |
| 260+ | $28.18 | $28.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
1A per contact.
1000 VRMS at sea level.
Panel mount with 4-40 UNC threaded flange.
IDC for ribbon cable, 26-28 AWG solid or stranded.
Copper alloy with gold plating on wiping area (30 µin) and nickel underplating (100 µin).
-55°C to +105°C.
