| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
755 pcs
|
755 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

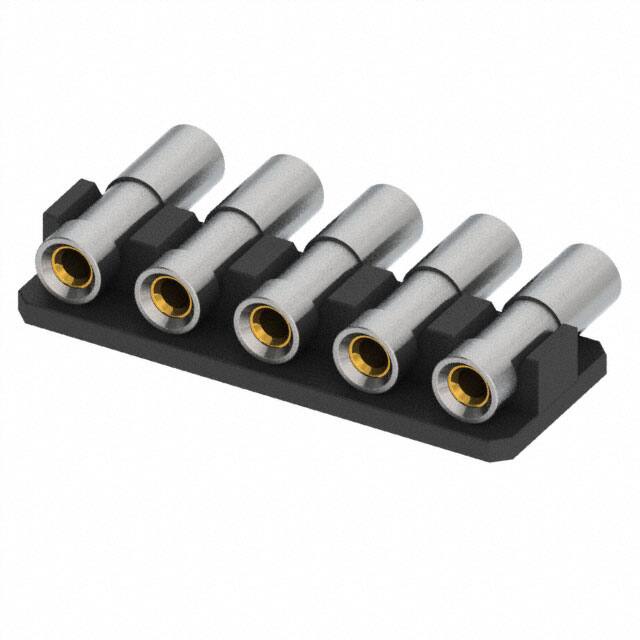

The Mill-Max Manufacturing 835-43-005-40-030001 is a board-to-board receptacle with a female socket contact type. It offers 5 positions, all loaded, in a single row configuration.
The connector has a pitch of 2.54mm and a current rating of 3A. The termination is solder, and the contact finish is tin with a thickness of 30.0µin (0.76µm). The insulation color is black, and the insulation height is 2.10mm.
Mounting is surface mount, right angle, with a push-pull fastening type. This component is suitable for applications requiring a reliable board-to-board connection with specific mounting and termination requirements.
Environmental compliance includes RoHS3, MSL Level 1, and REACH Unaffected, though these are noted as unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.35 | $6.35 |
| 10+ | $5.74 | $5.74 |
| 25+ | $5.42 | $5.42 |
| 50+ | $5.29 | $5.29 |
| 100+ | $5.03 | $5.03 |
| 250+ | $4.50 | $4.50 |
| 500+ | $4.23 | $4.23 |
| 1,450+ | $3.72 | $3.72 |
| 2,900+ | $3.52 | $3.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The receptacle has 5 positions.
The pitch is 2.54mm.
The current rating is 3A.
It is a surface mount, right angle mounting type.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
The insulation height is 2.10mm.
