| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,282 pcs
|
1282 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Inner Contact Plating | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Quantity Per Reel | |
| SVHC Present | |
| Shell Plating | |
| Style | |
| Tape & Reel | |
| Termination |

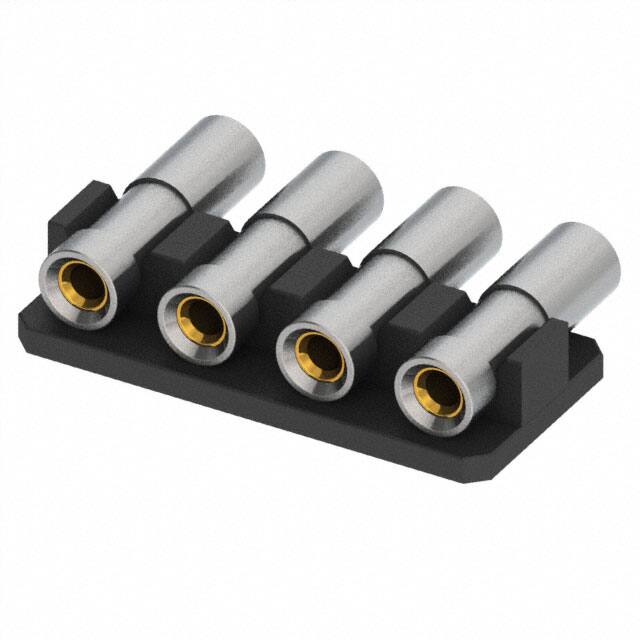

The Mill-Max Manufacturing 835-43-004-40-030001 is a 4-position single row receptacle designed for surface mount right angle mounting. This board-to-board connector features a push-pull fastening mechanism and is suitable for applications requiring reliable interconnection in compact designs.
Electrical specifications include a current rating of 3A. The connector is built with a brass alloy contact material and a Nylon 46 insulator with 30% or 45% glass fill. The shell plating is 200 μ" tin (matte finish) over 100 μ" nickel, while inner contacts are plated with 30 μ" gold over 50 μ" nickel. The connector is rated for lead-free reflow temperatures up to 260°C.
Packaging is provided in tape and reel format with 1450 units per reel. The product is RoHS compliant per directive 2011/65/EU with exemption 6c for lead content in copper alloy. This connector is commonly used in compact electronic assemblies where space savings and reliable board-to-board connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.18 | $6.18 |
| 10+ | $5.59 | $5.59 |
| 25+ | $5.28 | $5.28 |
| 50+ | $5.16 | $5.16 |
| 100+ | $4.90 | $4.90 |
| 250+ | $4.38 | $4.38 |
| 500+ | $4.13 | $4.13 |
| 1,450+ | $3.63 | $3.63 |
| 2,900+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions, single row.
2.54mm (0.100").
3A.
Surface mount, right angle.
Inner contacts: 30 μ" gold over 50 μ" nickel; shell plating: 200 μ" tin (matte finish) over 100 μ" nickel.
Tape and reel, 1450 pieces per reel.
Yes, RoHS compliant per directive 2011/65/EU with exemption 6c for lead content in copper alloy.
