| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Above Board Height | |
| Accepting Lead Diameter Range | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish (Inner) | |
| Contact Finish (Shell) | |
| Contact Finish Thickness | |
| Contact Finish Thickness (Inner) | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Insulator Height | |
| Insulator Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Prop 65 | |
| Rated Voltage | |
| SMT Pad Size | |
| Standard Package Quantity | |
| Static Sensitive | |
| Style | |
| Tape & Reel | |
| Tape Width | |
| Termination |

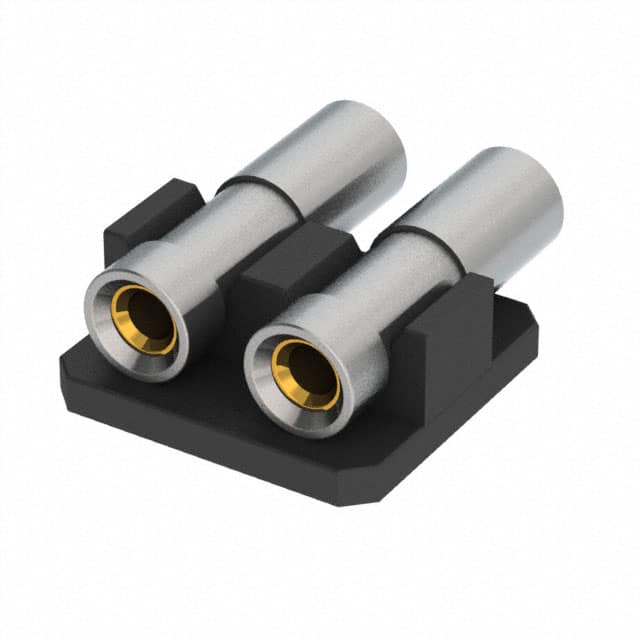

The Mill-Max 835-43-002-40-030001 is a 2-position single row receptacle designed for board-to-board applications. It features a push-pull fastening mechanism and accepts lead diameters from 0.381mm to 0.635mm.
The receptacle is rated for 3A current with a maximum contact resistance of 10 mΩ and minimum insulation resistance of 10,000 MΩ. Its operating temperature ranges from -55°C to +125°C.
The connector uses gold inner contacts (0.76µm gold over 50µin nickel) and tin shell plating (200µin tin over 100µin nickel). The insulator is made of Nylon 4/6.
Packaged in tape and reel on 16mm tape, the component is supplied in a standard quantity of 1,450 pieces per reel. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.97 | $4.97 |
| 10+ | $4.52 | $4.52 |
| 25+ | $4.28 | $4.28 |
| 100+ | $3.98 | $3.98 |
| 250+ | $3.48 | $3.48 |
| 500+ | $3.38 | $3.38 |
| 1,450+ | $2.90 | $2.90 |
| 2,900+ | $2.72 | $2.72 |
| 4,350+ | $2.59 | $2.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions (all positions loaded) in a single row.
The pitch is 2.54mm (0.100").
The current rating is 3A.
Rated voltage is 100 VRMS / 150 VDC.
Surface mount, right angle.
