| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

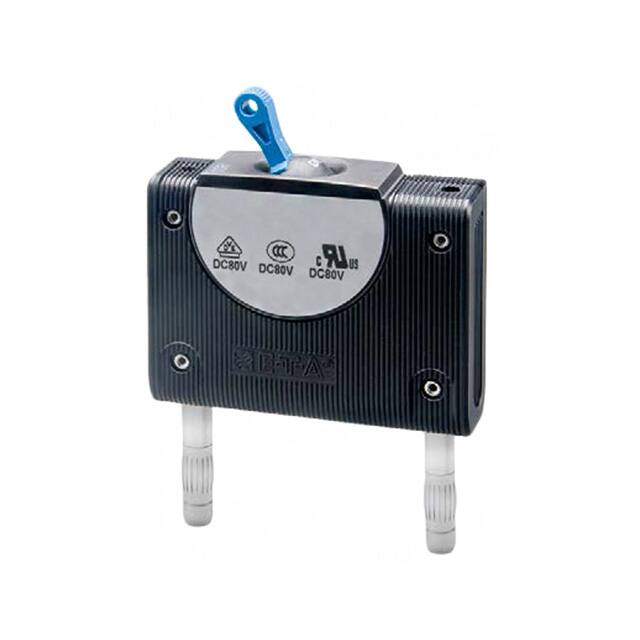

This E-T-A 8345 series hydraulic-magnetic circuit breaker, part number 8345-F01A-U0T1-282013-100A, is a single-pole device designed for reliable circuit protection. It offers a robust 100A current rating and is suitable for applications requiring up to 480V AC or 80V DC.
Featuring a trip-free mechanism and toggle actuation, this breaker ensures operational safety. It is designed for panel mounting, making integration into control panels and switchgear straightforward. The device operates within an ambient temperature range of -40°C to +85°C and provides an ingress protection rating of IP40 in the operating area.
Typical applications for this circuit breaker include power supplies, switchgear, instrumentation, and process control engineering within the communication and transport sectors. Its construction adheres to industry standards, including approvals from CSA, GB, IEC, and UL, ensuring broad applicability and compliance.
The current rating is 100A.
This circuit breaker supports 480V AC and 80V DC.
It is designed for panel mounting.
The ambient temperature range is -40°C to +85°C.
The ingress protection rating for the operating area is IP40.
The typical life is 10,000 operations at 1 x IN.
Typical applications include power supplies, switchgear, instrumentation, and process control engineering in the communication and transport business fields.
