| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43 pcs
|
43 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Temperature Rating | |
| Termination | |
| Termination Style | |
| Wire Accommodation | |
| Withstanding Voltage |

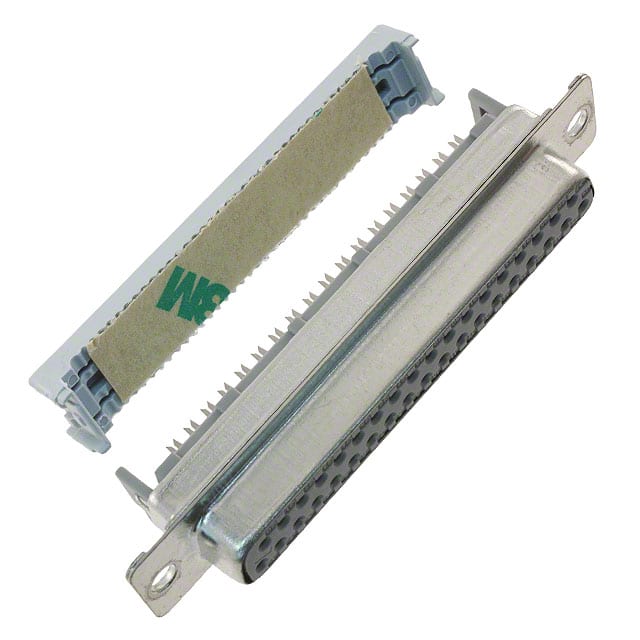

The 3M 8337-6009 is a D-Sub receptacle connector from the 8300 series. It features 37 female socket contacts arranged in 2 rows, with a shell size of 4 (DC, C). The connector is designed for panel mount applications with a flange feature for housing/shell (unthreaded). Termination is via IDC (Insulation Displacement Connection) for ribbon cable, accommodating 26 and 28 AWG solid or stranded wire.
Electrical specifications include a current rating of 1 A per contact, with gold plating on the wiping area (30 µin) over nickel underplating. Insulation resistance is greater than 1×10^9 Ω at 500 V DC, and the connector withstands 1000 V RMS at sea level. The operating temperature range is -55°C to +105°C.
The shell is steel with tin plating, and the insulation material is glass filled polyester (PBT) with a UL94 V-0 flammability rating. The contact material is copper alloy. This connector is suitable for applications requiring reliable signal connections in industrial, telecommunications, and computing equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.21 | $26.21 |
| 10+ | $22.27 | $22.27 |
| 20+ | $20.88 | $20.88 |
| 50+ | $19.89 | $19.89 |
| 100+ | $19.21 | $19.21 |
| 200+ | $18.15 | $18.15 |
| 500+ | $17.62 | $17.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
37 positions.
1 A per contact.
1000 V RMS at sea level.
Panel mount.
IDC (Insulation Displacement Connection) for ribbon cable.
-55°C to +105°C.
UL94 V-0.
