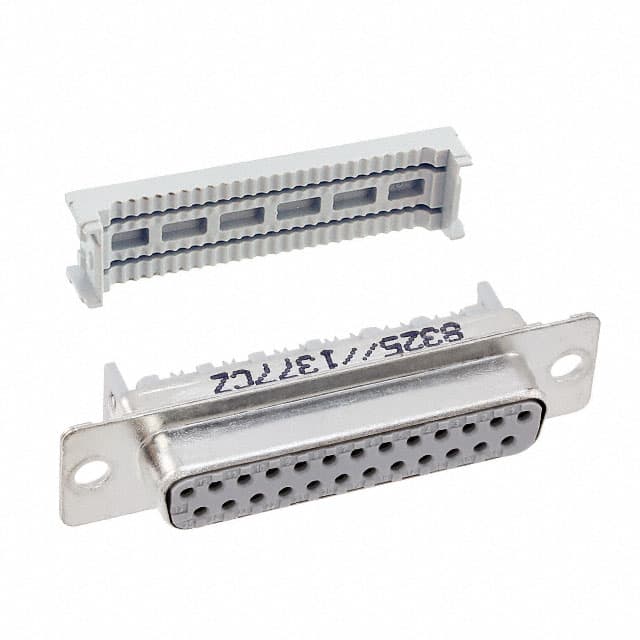

The 3M 8325-6009 is a D-Sub receptacle connector from the 8300 series. It features 25 positions arranged in 2 rows, with female socket contacts. The connector is designed for panel mount installation and uses IDC (Insulation Displacement Connection) termination for ribbon cable, accommodating 26 and 28 AWG solid or stranded wires. The shell is steel with tin plating, and the shell size is 3 (DB, B). The flange feature is housing/shell (unthreaded). The connector includes a feed through feature. Electrical ratings include a current rating of 1A, insulation resistance greater than 1×10⁹ Ω at 500 VDC, and withstanding voltage of 1000 V RMS at sea level. The operating temperature range is -55°C to +105°C. The insulation material is glass filled polyester (PBT) with a UL94 V-0 flammability rating. Contacts are copper alloy with gold plating (30 µin) over nickel underplating (50 µin). This connector is suitable for signal applications requiring reliable connections in industrial or commercial environments. Regulatory information, including RoHS compliance, can be obtained from 3M.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.33 | $9.33 |
| 10+ | $8.52 | $8.52 |
| 20+ | $8.43 | $8.43 |
| 50+ | $8.03 | $8.03 |
| 100+ | $7.64 | $7.64 |
| 200+ | $7.07 | $7.07 |
| 500+ | $6.82 | $6.82 |
| 1,000+ | $6.49 | $6.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
1A.
The connector is rated for 1000 V RMS withstanding voltage at sea level.
Panel Mount.
IDC (Insulation Displacement Connection) for ribbon cable.
-55°C to +105°C.
26 and 28 AWG solid or stranded wire.
