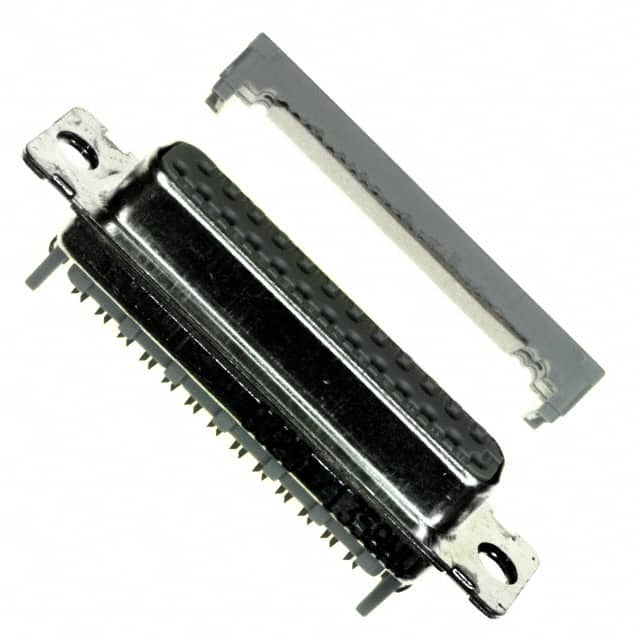

The 3M 8325-6000 is a D-Sub receptacle connector from the 8300 series, designed for panel mount applications with IDC termination for ribbon cable. It has 25 positions arranged in 2 rows, with a DB-25 shell size. The connector accepts 26 and 28 AWG solid or stranded wire.
Electrical characteristics include a current rating of 1A, insulation resistance greater than 1×10^9 Ω at 500 V DC, and withstanding voltage of 1000 V RMS at sea level. The operating temperature range is -55°C to +105°C. Contacts are copper alloy with 30 µin gold plating over 50 µin nickel underplating.
The insulating material is glass filled polyester (PBT) with UL94 V-0 flammability rating. The shell is steel with tin plating, and strain relief is stainless steel. This part is RoHS3 compliant (unverified), with REACH unaffected and MSL 1. It has a feed through feature.
Mounting is panel mount with housing/shell unthreaded flange. Termination is via IDC for ribbon cable, suitable for 26-28 AWG wire. The connector comes in a gray color, with marking including 3M logo and contact position numbers.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.44 | $9.44 |
| 10+ | $8.62 | $8.62 |
| 20+ | $8.21 | $8.21 |
| 50+ | $7.77 | $7.77 |
| 100+ | $7.49 | $7.49 |
| 200+ | $6.92 | $6.92 |
| 500+ | $6.68 | $6.68 |
| 1,000+ | $6.36 | $6.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions.
1A.
1000V RMS (withstanding voltage at sea level).
Panel mount.
IDC, ribbon cable.
-55°C to +105°C.
RoHS3 compliant per database, but unverified.
