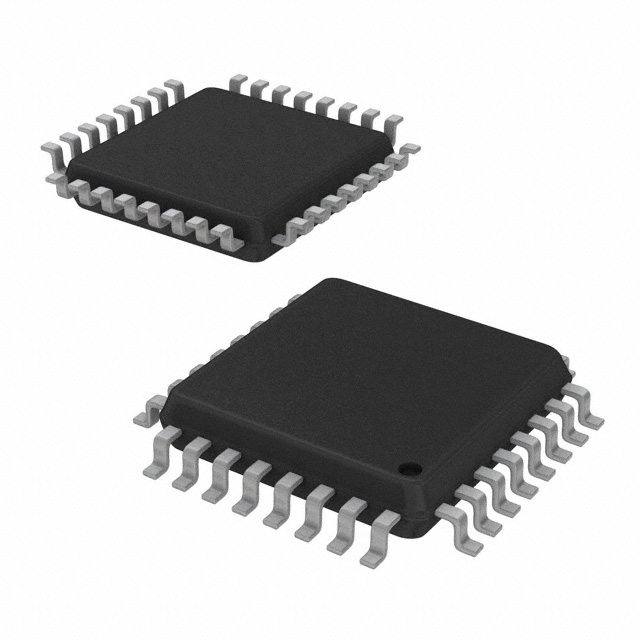

83210AYLFT The Renesas 83210AYLFT is a 1:10 HSTL fanout buffer operating at up to 150 MHz. It comes in a 32-TQFP surface mount package with a supply voltage range of 1.38V to 1.62V.
Mfr Part #:

83210AYLFT

Available from 1 distributors
Mfr Name: Renesas
Renesas
The Renesas 83210AYLFT is a 1:10 HSTL fanout buffer operating at up to 150 MHz. It comes in a 32-TQFP surface mount package with a supply voltage range of 1.38V to 1.62V.
✓ Total Stock: 2,157 pcs

83210AYLFT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
2,157 pcs
On Request
2157 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

83210AYLFT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Mounting Type
Number of Circuits
Operating Temperature
Output
Ratio
SVHC Present
Supplier Device Package
Type
Voltage
View Similar Products (0)

83210AYLFT Description

Short technical summary and product information.

The Renesas 83210AYLFT is a 1:10 fanout buffer designed for HSTL (High-Speed Transceiver Logic) signal distribution. It provides one input to ten outputs with a maximum frequency of 150 MHz.



The device operates from a supply voltage of 1.38V to 1.62V and is specified for an operating temperature range of 0°C to 85°C. The input and output logic levels are HSTL, making it suitable for high-speed memory and communication interfaces.



The 83210AYLFT is housed in a 32-TQFP package (7x7 mm) with surface mount mounting. It is a non-differential buffer, suitable for single-ended HSTL clock distribution.

83210AYLFT Quick Information

Product Type: Fanout Buffer (Distribution)
Canonical Name: Renesas 83210AYLFT 1:10 HSTL Fanout Buffer
Subcategory: Clock Buffers, Drivers

83210AYLFT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

83210AYLFT Features

  • 1:10 fanout buffer for HSTL signals.
  • Maximum operating frequency of 150 MHz.
  • Supply voltage range 1.38V to 1.62V.
  • Surface mount 32-TQFP package.
  • Operating temperature 0°C to 85°C.

83210AYLFT Applications

  • Clock distribution for DDR memory interfaces.
  • Timing buffering in networking equipment.
  • Fanout for HSTL clock signals.
  • Clock buffering in telecom infrastructure.
  • Signal distribution for FPGA reference clocks.

83210AYLFT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the fanout ratio of the 83210AYLFT?

1:10.

What is the maximum frequency?

150 MHz.

What is the supply voltage range?

1.38V to 1.62V.

What is the operating temperature range?

0°C to 85°C.

What package does the 83210AYLFT come in?

32-TQFP (7x7 mm).

Is the 83210AYLFT RoHS compliant?

RoHS3 Compliant (unverified).

What is the input/output logic type?

HSTL.
