Mfr Part #:

832-10-100-30-001101

Mfr Name: Preci-Dip

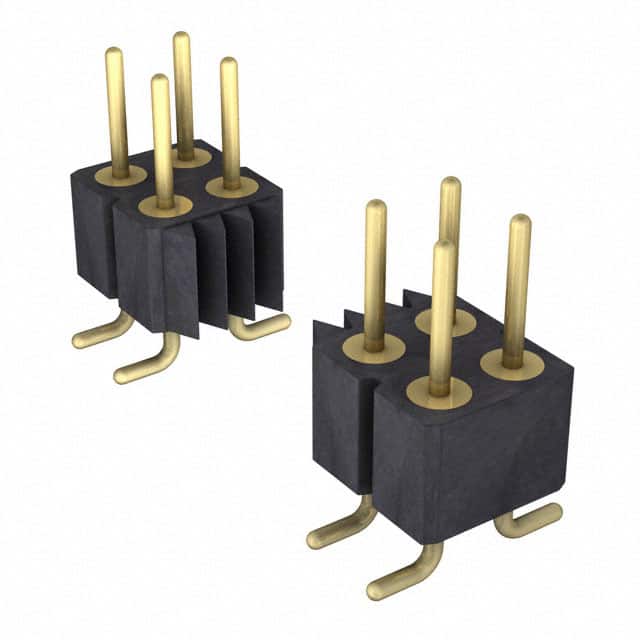

This is a 100-position, 2-row, 2.00mm pitch surface mount header from Preci-Dip. It features unshrouded male pins with gold finish and is rated for 3A and 150VDC.

✓ Total Stock: 8 pcs

$ Price Range: $27.16 - $28.93

832-10-100-30-001101 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	8 pcs On Request	8 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

832-10-100-30-001101 Description

Short technical summary and product information.

The Preci-Dip 832-10-100-30-001101 is a 100-position, 2-row, 2.00mm pitch surface mount header designed for board-to-board interconnections. It features unshrouded male pins with gold-plated brass contacts (0.25µm gold thickness) for reliable signal integrity. The header is rated for 3A current per contact and 150VDC voltage, with an operating temperature range of -55°C to 125°C. The insulation is made of black glass-filled liquid crystal polymer (LCP) with UL94 V-0 flammability rating, and the overall height is 2.79mm. Termination is via solder to surface mount pads, making it suitable for automated assembly processes. This connector is commonly used in high-density PCB layouts requiring a compact, robust interconnect solution.

832-10-100-30-001101 Quick Information

Product Type: Header, Male Pins

Series: 832

Canonical Name: Header, Male Pin, 100 Position, 2 Row, 2.00mm Pitch, Surface Mount, Preci-Dip

Subcategory: Board to Board

832-10-100-30-001101 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

832-10-100-30-001101 Estimated Pricing

Qty	Low	High
50+	$28.93	$28.93
100+	$27.97	$27.97
250+	$27.16	$27.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

832-10-100-30-001101 Features

100 positions in a 2-row configuration.
2.00mm pitch for compact designs.
Surface mount termination for automated assembly.
Gold-plated contacts for reliable connections.
Rated for 3A current and 150VDC.

832-10-100-30-001101 Applications

Used in board-to-board interconnections.
Suitable for high-density PCB layouts.
Ideal for industrial control systems.
Common in telecommunications equipment.

832-10-100-30-001101 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the Preci-Dip 832-10-100-30-001101 have?

It has 100 positions, all loaded, in a 2-row configuration.

What is the pitch of this header?

The pitch is 2.00mm (0.079 inches).

What is the current rating?

The current rating is 3A per contact.

What is the voltage rating?

The voltage rating is 150VDC.

What is the mounting type?

It is a surface mount (SMD) header with solder termination.

What is the contact finish?

The contacts are gold-plated with a thickness of 0.25µm (10µin).

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

Category	Headers, Male Pins
Manufacturer Name	Preci-Dip
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	0.25 µm (10 µin)
Contact Length	3.60 mm (0.141 in)
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.79 mm (0.110 in)
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	100
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.00 mm (0.079 in)
Row Spacing	2.00 mm (0.079 in)
Shrouding	Unshrouded
Style	Board to Board
Termination	Solder
Voltage Rating	150 VDC
