| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style |

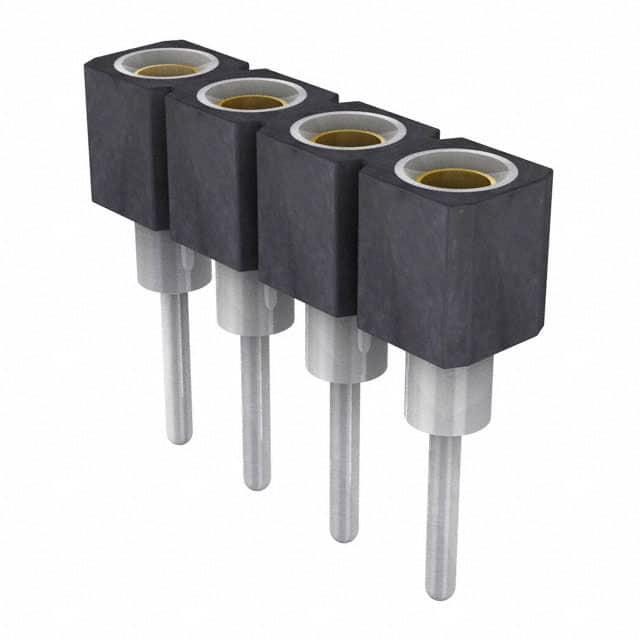

The Preci-Dip 831-87-004-10-001101 is a 4-position female socket connector designed for board-to-board applications. It features a single row of contacts with a 2.00mm (0.079") pitch, making it suitable for compact PCB layouts. The connector uses through-hole termination with solder contacts for reliable mechanical and electrical connections.
The socket contacts are finished with tin, providing good solderability and corrosion resistance. The connector housing is made of black UL94 V-0 rated material, ensuring flammability safety. The operating temperature range is -55°C to 125°C, suitable for a wide range of environments. The connector is rated for 3A current per contact.
This push-pull fastening type socket is designed for board-to-board interconnections where a secure but easily separable connection is required. The contact length of 3.18mm and insulation height of 4.20mm provide adequate clearance for mating headers. The 831-87-004-10-001101 is RoHS3 compliant and REACH unaffected, with an MSL level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.73 | $0.73 |
| 10+ | $0.62 | $0.62 |
| 100+ | $0.52 | $0.52 |
| 250+ | $0.47 | $0.47 |
| 1,000+ | $0.44 | $0.44 |
| 3,000+ | $0.41 | $0.41 |
| 6,000+ | $0.39 | $0.39 |
| 12,000+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
2.00mm (0.079 inches).
3A per contact.
Through hole.
-55°C to 125°C.
Tin.
UL94 V-0.
