| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

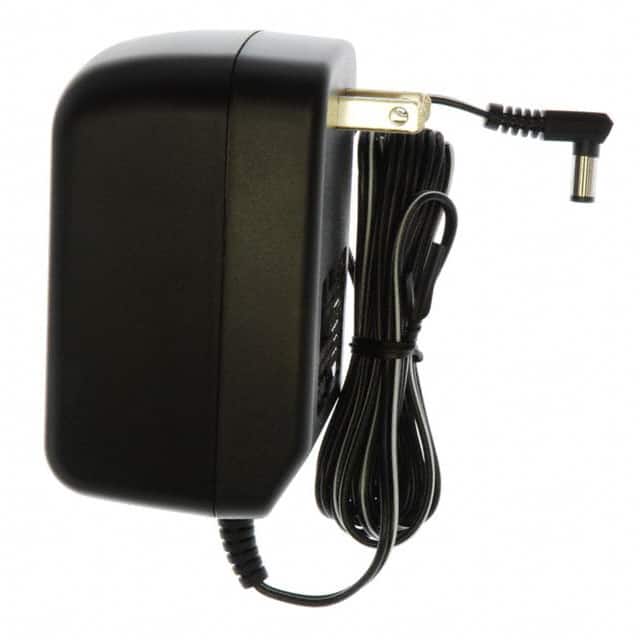

This Tamura 830AS12080 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a stable 12V output with a current capability of 800mA, resulting in a total power output of 9.6W.
The adapter features a NEMA 1-15P input connector suitable for North American outlets and a right-angle barrel plug output measuring 2.1mm inner diameter and 5.5mm outer diameter, with a length of 12.5mm. The polarization is set to positive center.
Operating within a temperature range of -10°C to 40°C, this unit has dimensions of 91.0mm x 58.0mm x 52.5mm (3.58" x 2.28" x 2.07"). The cord length is 72 inches (1.83m). It is designed as a Wall Mount (Class II) adapter with a fixed blade input type.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status.
The output voltage is 12V DC.
The operating temperature range is -10°C to 40°C.
The output current rating is 800mA.
It has a NEMA 1-15P fixed blade input connector.
The output is a right-angle barrel plug, 2.1mm inner diameter x 5.5mm outer diameter, with positive center polarity.
The cord length is 72 inches (1.83 meters).
It is a wall mount adapter with Class II (double insulated) construction.
