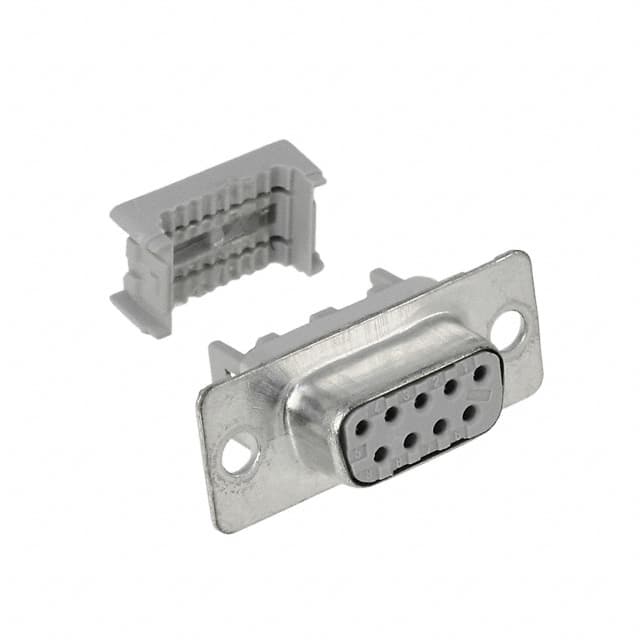

The 3M 8309-6009 is a 9-position D-Sub receptacle connector designed for reliable signal interconnect applications. It features female socket contacts with gold plating (30 μin over 50 μin nickel) on copper alloy for low resistance and corrosion resistance. This connector uses IDC termination for 26-28 AWG solid or stranded ribbon cable, simplifying assembly without soldering. The panel-mount shell is steel with tin plating, size DE-1 (E shell), and the housing includes an unthreaded flange for mounting. The insulator is glass-filled polyester (PBT) with UL 94 V-0 flammability rating. Electrical rating: 1A per contact, insulation resistance >1 GΩ at 500V DC, withstanding voltage 1000V RMS at sea level. Operating temperature range –55°C to +105°C. Suitable for data, signal, and control systems using standard D-sub connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.25 | $7.25 |
| 10+ | $6.52 | $6.52 |
| 20+ | $6.27 | $6.27 |
| 50+ | $6.13 | $6.13 |
| 100+ | $5.87 | $5.87 |
| 200+ | $5.34 | $5.34 |
| 1,000+ | $5.07 | $5.07 |
| 2,000+ | $4.99 | $4.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The part number is 8309-6009 manufactured by 3M.
It has 9 positions arranged in 2 rows.
Termination is IDC (Insulation Displacement Connection) for ribbon cable.
The current rating is 1A per contact.
It supports panel mounting with an unthreaded flange feature.
The operating temperature range is -55°C to +105°C.
The insulator is glass-filled polyester (PBT) with UL94 V-0 flammability rating.
