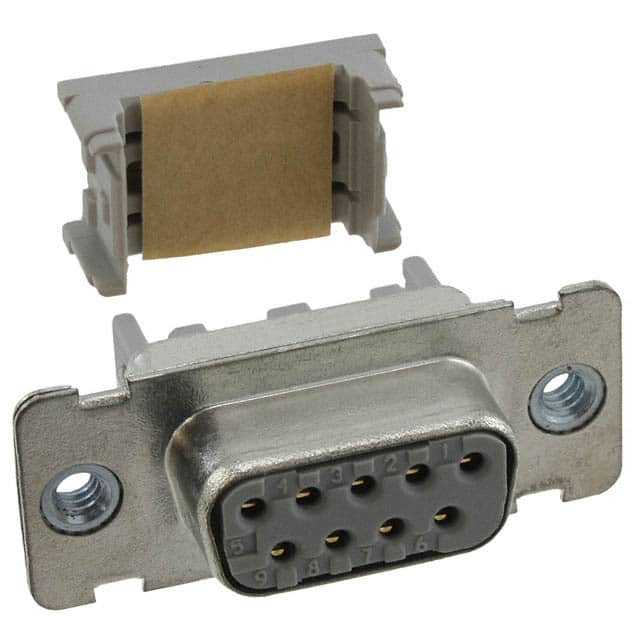

The 3M 8309-6003 is a D-Sub receptacle connector from the 8300 series, featuring 9 female socket contacts in a 2-row configuration. It uses IDC (Insulation Displacement Contact) termination for 26-28 AWG solid or stranded ribbon cable and is designed for panel mount applications with a 4-40 threaded flange feature.
Electrical specifications include a current rating of 1 A, withstanding voltage of 1000 V RMS, and insulation resistance greater than 1 × 10^9 ohms. The connector operates over a temperature range of -55°C to +105°C and is rated UL 94V-0 for flammability.
Mechanical construction includes a glass-filled PBT insulator, gold-plated copper alloy contacts (30 µ" gold over 50 µ" nickel underplating), and a tin-plated steel shell. The integrated metal strain relief is stainless steel, providing robust cable retention.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.18 | $9.18 |
| 10+ | $7.81 | $7.81 |
| 20+ | $7.32 | $7.32 |
| 50+ | $6.97 | $6.97 |
| 100+ | $6.64 | $6.64 |
| 200+ | $6.14 | $6.14 |
| 500+ | $5.92 | $5.92 |
| 1,000+ | $5.64 | $5.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1 A.
The operating temperature range is -55°C to +105°C.
The insulator material is UL 94V-0 rated.
The IDC termination accommodates 26 and 28 AWG solid or stranded wire.
This connector is designed for panel mount with a 4-40 threaded flange.
Insulation resistance is greater than 1 × 10^9 Ω at 500 V DC.
