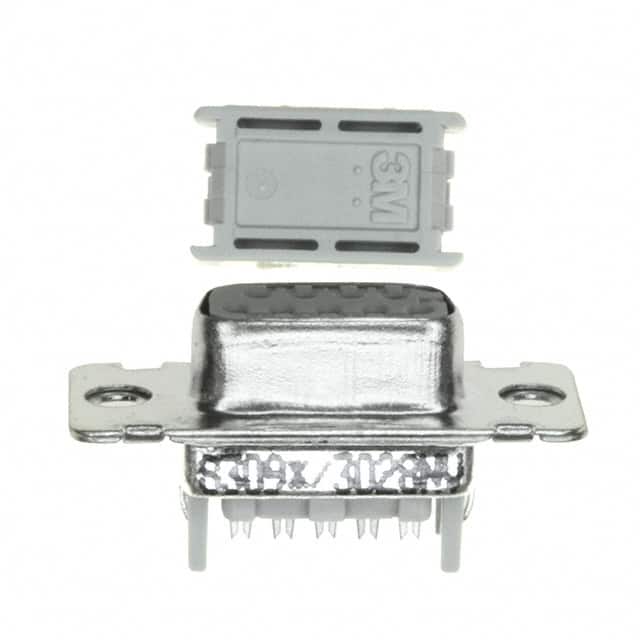

The 3M 8309-6000 is part of the 8300 Series D-Sub socket connectors. It features a 9-position, 2-row layout with a DE (E) shell size. The connector uses female sockets with a copper alloy contact material plated with 30 µin of gold on the wiping area over a 50 µin minimum nickel underplating. It is terminated via IDC for 26 or 28 AWG solid or stranded ribbon cable.
The connector is mounted to a panel using an unthreaded housing/shell flange. The steel shell is tin plated, and the insulator is glass filled polyester (PBT) rated UL94 V-0. It carries a current rating of 1 A per contact, minimum insulation resistance of 1e9 Ω at 500 VDC, and a minimum withstanding voltage of 1000 V RMS at sea level. The operating temperature range is -55°C to +105°C.
This feed-through version is suitable for applications requiring a reliable, low-profile D-Sub interconnect solution. The 8300 Series offers open or closed end covers and multiple mounting options.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.88 | $6.88 |
| 10+ | $5.96 | $5.96 |
| 20+ | $5.59 | $5.59 |
| 50+ | $5.32 | $5.32 |
| 100+ | $5.06 | $5.06 |
| 200+ | $4.68 | $4.68 |
| 500+ | $4.51 | $4.51 |
| 1,000+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 9 positions arranged in 2 rows.
The current rating is 1 A per contact.
It is designed for panel mount using an unthreaded housing/shell flange.
It uses IDC (Insulation Displacement Connection) for 26-28 AWG solid or stranded ribbon cable.
The operating temperature range is -55°C to +105°C.
RoHS compliance is listed as RoHS3 compliant, but this has not been directly verified from the manufacturer.
