| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | 1118 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Climatic Test | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Holder Material | |
| IP Rating | |
| Impulse Voltage (@ 1.2/50 µs) | |
| Impulse Voltage (Minimum @ 50 Hz, 1 min, dry) | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Orientation | |
| Power Dissipation | |
| Protection Class | |
| Rated Current (UL/CSA) | |
| Rated Current (Unspecified condition) | |
| Rated Current (VDE) | |
| Rated Voltage | |
| Tape & Reel | |
| Termination Style | |
| Vibration Resistance | |
| Voltage | |
| Weight |

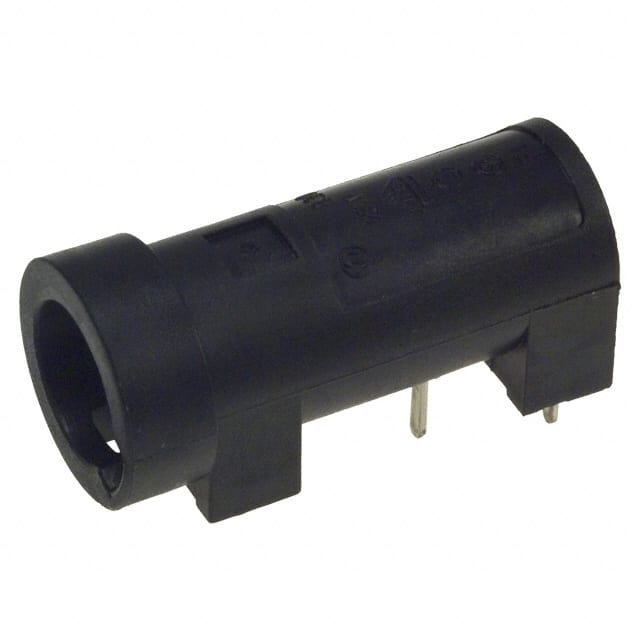

The Littelfuse 83000000005 is a single-circuit, through-hole cartridge fuseholder from the 830 series. Designed for 5mm x 20mm cartridge fuses, it offers a rated voltage of 250V and dual current ratings: 6.3A under VDE and 16A under UL/CSA standards. The holder features a horizontal orientation, PC pin termination with 5.08mm lead spacing, and is constructed with a black thermoplastic body (UL94 V-0) and tin-plated copper alloy contacts.
Electrical characteristics include a contact resistance of ≤5 mΩ, dielectric strength >1.5 kV, and impulse voltage withstand of 4 kV (50 Hz, 1 min dry / 1.2/50 µs). Insulation resistance exceeds 10³ MΩ at 500 VDC. The holder operates over -25°C to 70°C and is rated IP40 (IEC 60529) with protection class PC2 (IEC 60127-6).
This fuseholder is suitable for printed circuit board mounting in applications requiring reliable overcurrent protection. The environmental test profile includes climatic testing per IEC 60068-2-1...3 and vibration resistance per IEC 60068-2-6 (10-60Hz at 0.75mm amplitude, 60-2000Hz at 10g, 24 cycles). Unit weight is 4.4g (holder only).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.51 | $3.51 |
| 5+ | $2.93 | $2.93 |
| 10+ | $2.51 | $2.51 |
| 50+ | $2.09 | $2.09 |
| 100+ | $1.86 | $1.86 |
| 300+ | $1.74 | $1.74 |
| 500+ | $1.65 | $1.65 |
| 1,000+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 250 V.
6.3 A under VDE and 16 A under UL/CSA.
It accepts 5mm x 20mm cartridge fuses.
Through-hole mounting with PC pin termination.
-25°C to 70°C.
