82V3001APVG The 82V3001APVG is a Stratum clock/frequency generator IC from Renesas with PLL, 1 output, and 32.768MHz maximum frequency.
Mfr Part #:

82V3001APVG

Available from 1 distributors
Mfr Name: Renesas
Renesas
The 82V3001APVG is a Stratum clock/frequency generator IC from Renesas with PLL, 1 output, and 32.768MHz maximum frequency.
✓ Total Stock: 8,745 pcs

82V3001APVG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8,745 pcs
On Request
8745 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

82V3001APVG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Lead Style
Main Purpose
Mounting Type
Number of Circuits
Operating Temperature
Output
PLL
Ratio
Supplier Device Package
Voltage
View Similar Products (0)

82V3001APVG Description

Short technical summary and product information.

The 82V3001APVG is a Stratum clock/frequency generator integrated circuit from Renesas. It features an integrated PLL and is designed for Stratum timing applications. The device accepts CMOS and TTL inputs and provides a single clock output with a 1:14 input-to-output ratio.



Operating from a 3V to 3.6V supply, the IC supports a maximum frequency of 32.768MHz. It is specified for an operating temperature range of -40°C to 85°C, making it suitable for industrial environments.

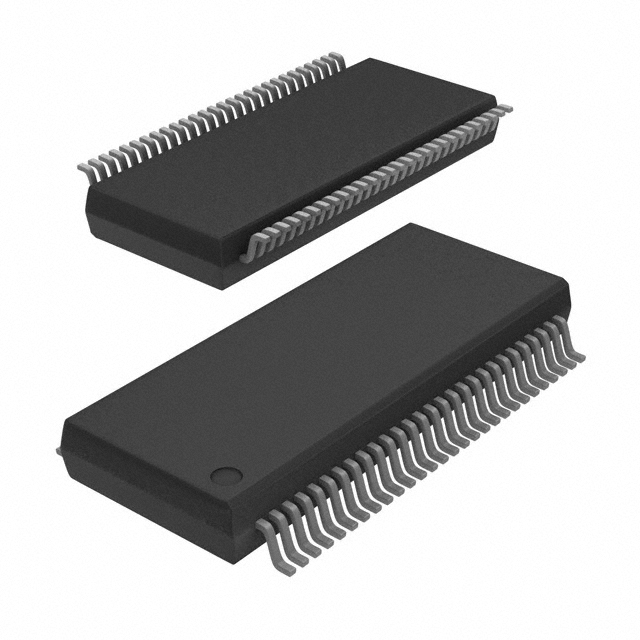

The 82V3001APVG is offered in a 56-BSSOP package with a 7.50mm width and is surface mount compatible. The supplier device package is 56-SSOP.

82V3001APVG Quick Information

Product Type: Application Specific Clock/Timing IC
Canonical Name: 82V3001APVG Stratum Clock/Frequency Generator IC
Subcategory: Application Specific Clock/Timing

82V3001APVG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

82V3001APVG Features

  • Integrated PLL for Stratum timing.
  • Accepts CMOS and TTL inputs.
  • Single clock output with 1:14 ratio.
  • Operates up to 32.768MHz maximum frequency.
  • Surface mount 56-SSOP package.

82V3001APVG Applications

  • Used in Stratum network timing systems.
  • Suitable for WAN clock synchronization.
  • Ideal for single-reference clock distribution.
  • Designed for industrial temperature environments.

82V3001APVG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum operating frequency of the 82V3001APVG?

32.768 MHz.

What is the supply voltage range?

3V to 3.6V.

What is the operating temperature range?

-40°C to 85°C.

What package does the 82V3001APVG come in?

56-BSSOP (0.295", 7.50mm Width) surface mount package, also designated as 56-SSOP.

Is the 82V3001APVG RoHS compliant?

RoHS3 Compliant (unverified).

What is the input-to-output ratio?

1:14.

Does the device support differential inputs or outputs?

No, both input and output are non-differential.
