| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
804,892 pcs
|
804892 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accepts Cable Insulation Diameter Range | |
| Accessory Type | |
| Cavity Diameter | |
| China RoHS | |
| Connector Seal Type | |
| Contains Lubricant | |
| ELV | |
| For Use With | |
| Halogen Free | |
| Number of Positions | |
| Operating Temperature Range | |
| Primary Product Color | |
| Resistance to Hydrocarbons | |
| Seal Material | |
| Shore A Hardness |

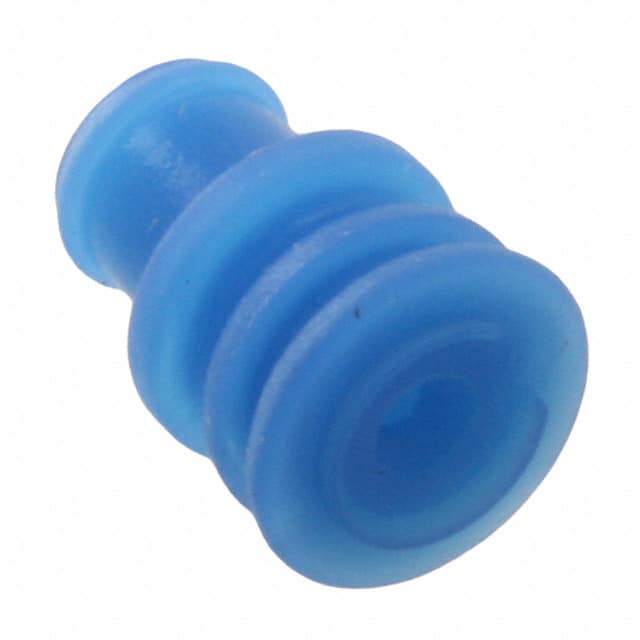

The TE Connectivity 828904-1 is a Single Wire Seal (SWS) designed for use with MCP series connectors. Constructed from blue silicone, this seal provides a robust barrier against moisture and contaminants in automotive and industrial applications.
Key specifications include a cavity diameter of 5.2 mm and an acceptance range for cable insulation diameter of 2.1 mm. The seal has a Shore A hardness of 50 and contains a built-in lubricant to ease assembly. It offers poor resistance to hydrocarbons and carries no UL flammability rating.
The 828904-1 is RoHS, REACH, ELV, and China RoHS compliant, and is halogen-free. It is designed for operating temperatures from -40 to 130 °C, making it suitable for harsh underhood environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
| 10+ | $0.10 | $0.10 |
| 25+ | $0.09 | $0.09 |
| 100+ | $0.08 | $0.08 |
| 250+ | $0.07 | $0.07 |
| 1,000+ | $0.06 | $0.06 |
| 2,500+ | $0.04 | $0.04 |
| 10,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40 to 130 °C.
Silicone, colored blue.
5.2 mm.
2.1 mm.
Yes, it is compliant with EU RoHS Directive 2011/65/EU.
Yes, it does not contain REACH SVHC according to the June 2022 candidate list.
