| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,379 pcs
|
1379 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

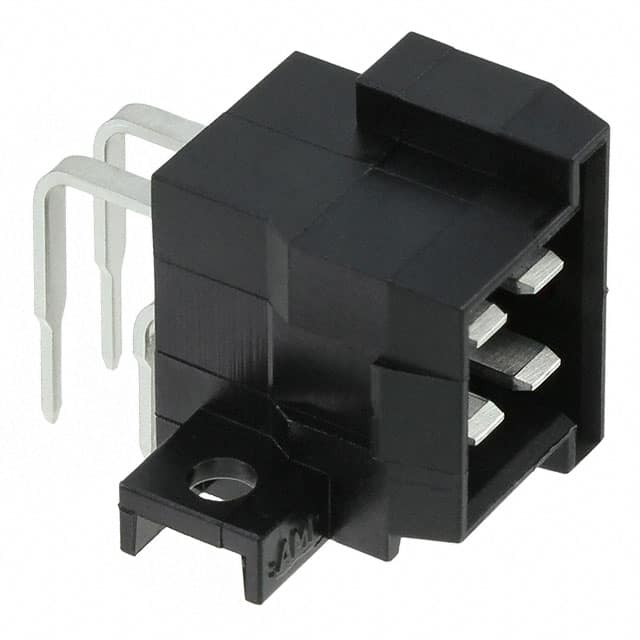

The TE Connectivity 828801-1 is a 4 position, 2 row, 5.00mm pitch right angle shrouded header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a mounting flange for secure attachment. The header uses rectangular tab contacts made of brass with a tin finish, and the contact length is 9.30mm. The insulator is black polyamide (PA66/Nylon 6/6) with a UL94 V-2 flammability rating. This component is through hole mounted with a right angle orientation and terminated via solder. It is rated for an operating temperature range of -55°C to 105°C. The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.73 | $5.73 |
| 10+ | $4.88 | $4.88 |
| 100+ | $4.15 | $4.15 |
| 500+ | $3.60 | $3.60 |
| 735+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 5.00mm (0.197 inches).
It has 4 positions arranged in 2 rows.
Through hole, right angle with solder termination.
-55°C to 105°C.
Brass contacts with a tin finish.
RoHS3 Compliant (low confidence, unverified).
