| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Size | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

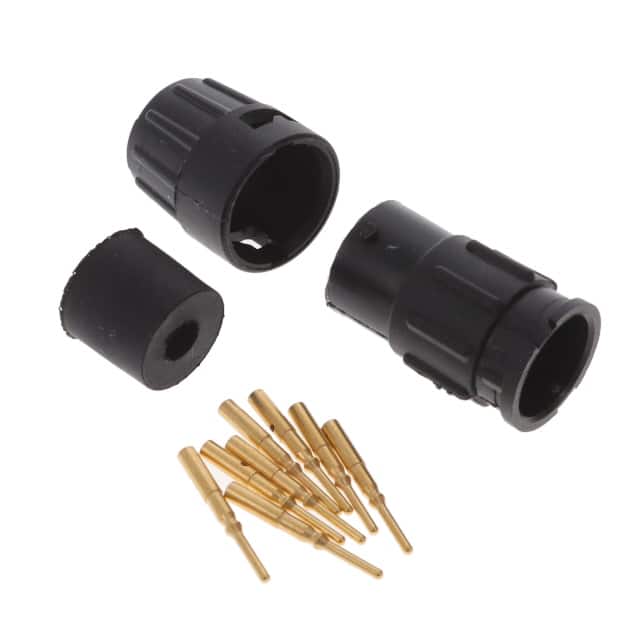

The Conxall/Switchcraft 8280-8PG-318 is a MINI-CON-X series field-installable circular connector. It is a cable-end receptacle with male pin contacts and uses crimp termination for secure wire attachment. The connector housing is made from polyamide (nylon) plastic, offering good mechanical strength and environmental resistance. A bayonet lock ensures reliable mating and quick disconnect.
This 8-position connector is keyed to prevent misalignment during mating. It has gold over nickel contact plating, providing excellent corrosion resistance and reliable signal integrity. The connector is rated for 600V and has a wide operating temperature range of -40°C to 115°C. It is designed for free-hanging (in-line) mounting and includes a backshell for cable strain relief. The cable opening accepts a diameter of 0.180 to 0.200 inches (4.57 to 5.08 mm).
The connector is unshielded and suitable for applications requiring a robust, weathertight connection. It is part of a modular system with matching panel-mount and cable-to-cable counterparts. The current rating varies by wire gauge for flexibility in different wiring setups.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.82 | $13.82 |
| 10+ | $11.75 | $11.75 |
| 20+ | $11.01 | $11.01 |
| 50+ | $10.49 | $10.49 |
| 100+ | $9.98 | $9.98 |
| 200+ | $9.23 | $9.23 |
| 500+ | $8.91 | $8.91 |
| 1,000+ | $8.48 | $8.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 600V.
It has 8 positions with male pin contacts.
It is free hanging (in-line).
It uses crimp termination.
The ingress protection is described as weathertight, making it suitable for outdoor or wet environments.
The shell is made from polyamide (nylon).
