| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Package Type | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

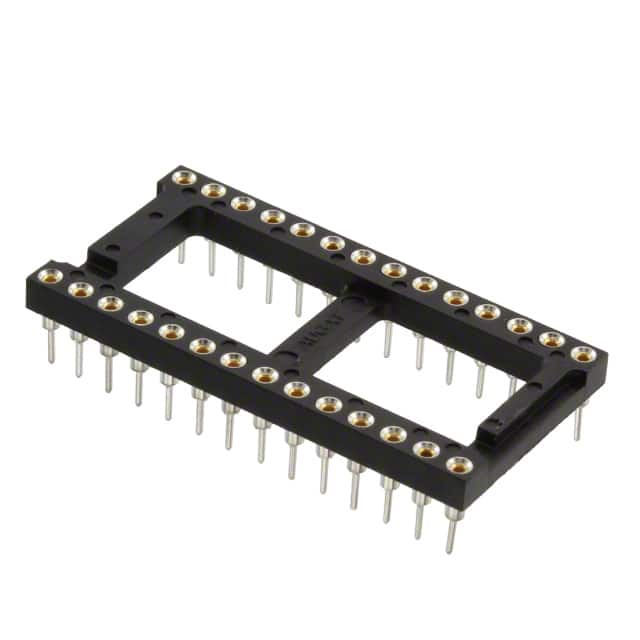

The 828-AG11D-ESL-LF is a 28-position DIP IC socket manufactured by TE Connectivity. It features an open-frame design with a 0.6 inch (15.24mm) row spacing and 2.54mm pitch, making it suitable for standard DIP-28 packages.
The socket utilizes gold-plated beryllium copper contacts for reliable electrical connections. The housing is made from polycyclohexylenedimethylene terephthalate (PCT) and polyester. It supports an operating temperature range of -55°C to 105°C and is designed for through-hole mounting with solder termination.
This socket is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). It is commonly used in prototyping, programming, and production applications where a reliable socketed connection is required.
28 positions.
2.54mm (0.100").
Through hole.
Gold.
-55°C to 105°C.
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester.
Yes, RoHS3 compliant.
