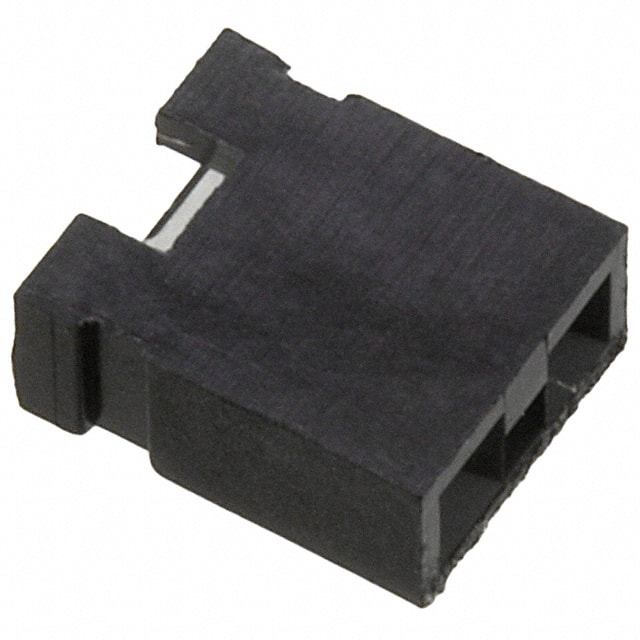

827914-3 TE Connectivity 827914-3 is a 2 position (1x2) female socket shunt connector with open top design, 2.54mm pitch, and 3A current rating. It features tin-plated contacts and a black polyamide housing with UL94 V-0 flammability rating.
Mfr Part #:

827914-3

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 827914-3 is a 2 position (1x2) female socket shunt connector with open top design, 2.54mm pitch, and 3A current rating. It features tin-plated contacts and a black polyamide housing with UL94 V-0 flammability rating.
✓ Total Stock: 180 pcs
$ Price Range: $0.32 - $0.56

827914-3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
180 pcs
On Request
180 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

827914-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Current Rating (Amps)
Gender
Height
Housing Material
Material Flammability Rating
Number of Positions or Pins (Grid)
Pitch
Tape & Reel
Type
View Similar Products (0)

827914-3 Description

Short technical summary and product information.

The TE Connectivity 827914-3 is a 2 position (1x2) female socket shunt connector designed for bridging adjacent pins on PCB headers. It features an open top configuration, allowing easy access for probing or testing. The connector has a pitch of 2.54mm (0.100") and a height of 6.00mm (0.236").



Electrical rating is 3A continuous current. The housing is made of black polyamide (PA66) with glass filling, rated UL94 V-0 for flammability. Contacts are finished with tin. The connector is RoHS3 compliant and REACH unaffected (unverified).



This shunt is suitable for configuration jumpers, prototyping, and low-power signal connections. Its compact 1x2 layout fits standard 2.54mm header strips.

827914-3 Quick Information

Product Type: Shunt Connector
Canonical Name: TE Connectivity 827914-3 2 Position (1x2) Female Socket Shunt Connector, Open Top, 2.54mm Pitch, Tin Contacts
Subcategory: Female Socket Shunt

827914-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

827914-3 Estimated Pricing

Qty Low High
1+ $0.56 $0.56
10+ $0.48 $0.48
25+ $0.44 $0.44
100+ $0.42 $0.42
250+ $0.39 $0.39
1,000+ $0.34 $0.34
2,800+ $0.33 $0.33
5,600+ $0.33 $0.33
11,200+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

827914-3 Features

  • 2 position (1x2) female socket shunt.
  • 2.54mm pitch for standard headers.
  • Rated for 3A continuous current.
  • Open top design for easy probing.
  • UL94 V-0 flammability rated housing.

827914-3 Applications

  • Bridging adjacent pins on PCB headers.
  • Configuration jumpers for circuit selection.
  • Used in prototyping and test fixtures.
  • Suitable for signal and low-power connections.

827914-3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

2 positions (1 x 2).

What is the pitch?

2.54mm (0.100").

What is the current rating?

3A.

What is the contact finish?

Tin.

What is the housing material?

Polyamide (PA66), Nylon 6/6, Glass Filled.

What is the flammability rating?

UL94 V-0.

What is the gender of the connector?

Female Sockets.
