| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
179 pcs
|
179 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| Type |

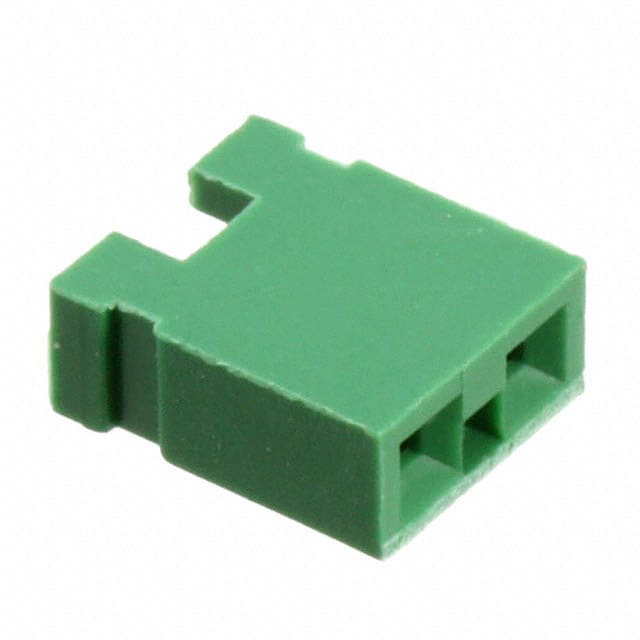

The TE Connectivity 827914-1 is a 2 position open top shunt designed for through-hole mounting. It features female sockets with gold contact finish for reliable connections. The shunt has a pitch of 2.54mm (0.100") and a height of 6.00mm (0.236"). It is rated for a current of 3A. The housing is made of green polyamide (PA66) with glass filling, and meets UL94 V-0 flammability rating. This shunt is suitable for jumper and configuration applications in various electronic assemblies. Termination is via solder. The part is RoHS3 compliant and has MSL 1 (unlimited) moisture sensitivity level. Note: Compliance data is unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
| 10+ | $0.64 | $0.64 |
| 25+ | $0.57 | $0.57 |
| 100+ | $0.54 | $0.54 |
| 250+ | $0.48 | $0.48 |
| 1,000+ | $0.45 | $0.45 |
| 2,800+ | $0.43 | $0.43 |
| 11,200+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions (1x2).
2.54mm (0.100").
3A.
Through hole.
Polyamide (PA66), Nylon 6/6, Glass Filled.
UL94 V-0.
Gold.
