| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,900 pcs
|
3900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA | |
| Connector Length | |
| Connector Type | |
| Connector Width | |
| Contact Base Material | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Length | |
| Contact Mating Area Plating Material Thickness | |
| Contact Type | |
| Contact Underplating Material | |
| Fastening Type | |
| Glow Wire Rating | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Mating Alignment Type | |
| Mating Entry Location | |
| Mating Retention Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Operating Voltage | |
| PCB Contact Termination Area Plating Material | |
| PCB Contact Termination Area Plating Material Thickness | |
| PCB Mount Alignment | |
| PCB Mount Retention | |
| PCB Thickness Recommended | |
| Packaging Method | |
| Packaging Quantity | |
| Panel Mount Feature | |
| Pitch | |
| Profile Height from PCB | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Post & Tail Length | |
| UL | |
| UL Flammability Rating | |
| VDE | |
| connector_height |

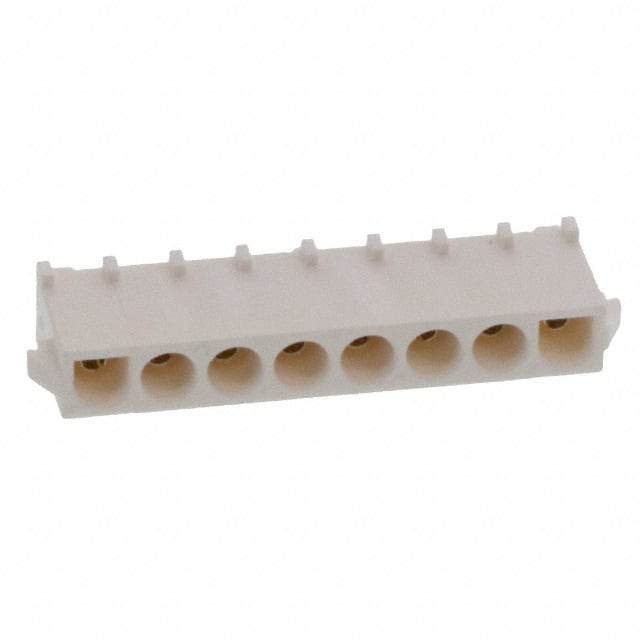

The TE Connectivity Universal MATE-N-LOK 826851-3 is a PCB mount header designed for wire-to-board applications. It features 8 positions arranged in a single row with a 6.35mm pitch, making it suitable for power and signal connections. The header is fully shrouded and uses tin-plated copper alloy contacts for reliable conductivity. Rated at 600 VAC and 12 A per contact, it can handle moderate power requirements.
The through-hole solder termination with a 3.56mm tail length is compatible with 1.57mm thick PCBs. The housing is made of PA 6.6 with a UL 94V-0 flammability rating, ensuring safety in high-temperature environments. The operating temperature range is -40 to 105°C. Mating retention is provided by a locking tab, and polarization ensures correct alignment during mating.
Packaged in boxes of 150, this header is ideal for industrial control, automotive, and consumer electronics applications where robust and reliable connections are required. It is RoHS compliant and holds UL, VDE, and CSA approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.34 | $3.34 |
| 10+ | $2.88 | $2.88 |
| 25+ | $2.87 | $2.87 |
| 100+ | $2.38 | $2.38 |
| 300+ | $2.37 | $2.37 |
| 600+ | $2.15 | $2.15 |
| 1,050+ | $2.07 | $2.07 |
| 2,550+ | $1.93 | $1.93 |
| 5,100+ | $1.85 | $1.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 8 positions.
The pitch is 6.35 mm (0.250 in).
The current rating is 12 A per contact.
The voltage rating is 600 VAC.
It is through hole solder mounting.
The operating temperature range is -40 to 105 °C.
The housing has a UL 94V-0 flammability rating.
