| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

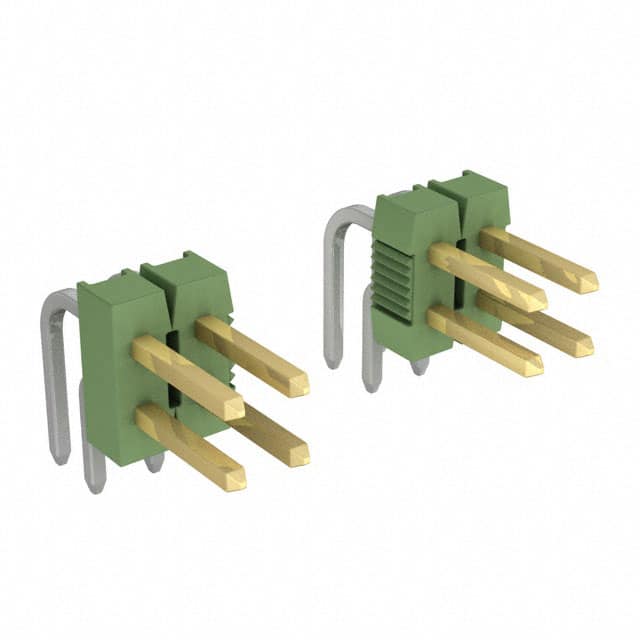

The TE Connectivity 826664-4 is an 8 position unshrouded breakaway header designed for board-to-board or cable applications. It features a right angle through hole mounting style with a 2.54mm pitch and 2 rows of male square pins. The insulator is green polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating, and the contacts are made of brass with a tin finish (3.90µin thickness). This connector is rated for 5A current and operates over a temperature range of -65°C to 105°C. The push-pull fastening type and unshrouded design make it suitable for general purpose interconnection where a low-profile right angle connection is needed.
| Qty | Low | High |
|---|---|---|
| 4,896+ | $0.71 | $0.71 |
| 9,792+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 8 positions arranged in 2 rows.
The current rating is 5A.
Through hole, right angle.
-65°C to 105°C.
