| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
353 pcs
|
353 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

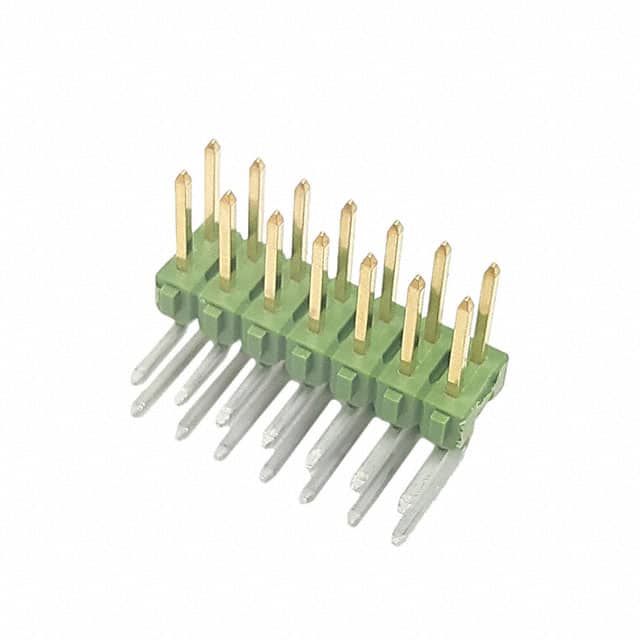

The TE Connectivity AMPMODU II 826634-7 is a 14-position, 2-row, unshrouded breakaway header with a 2.54mm pitch and row spacing. It features square male pin contacts made of brass with a tin finish. The connector is designed for through hole, right angle mounting with solder termination.
This header is rated for a current of 5A and operates over a temperature range of -65°C to 105°C. The insulation material is green Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating. The push-pull fastening type and unshrouded design make it suitable for board-to-board or cable applications.
The contact length is 6.70mm and the insulation height is 5.56mm. All 14 positions are loaded. This component is part of the AMPMODU II series from TE Connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.74 | $2.74 |
| 10+ | $2.33 | $2.33 |
| 400+ | $1.79 | $1.79 |
| 800+ | $1.71 | $1.71 |
| 1,200+ | $1.66 | $1.66 |
| 5,200+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 826634-7 has 14 positions in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm (0.100").
The current rating is 5A.
The operating temperature range is -65°C to 105°C.
The mounting type is through hole, right angle.
