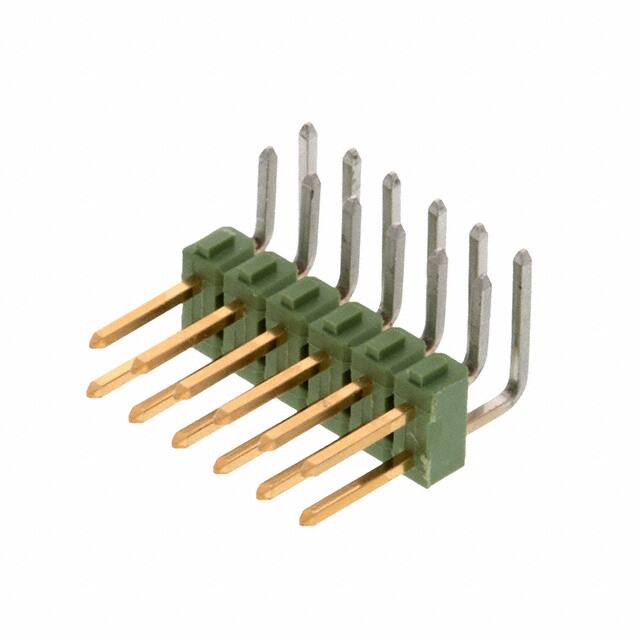

The 826634-6 is a 12-position unshrouded breakaway pin header from TE Connectivity's AMPMODU II series. It features a 2.54mm pitch and 2.54mm row spacing, with a through hole right angle mounting style for solder termination. The header uses square brass male pins with a tin contact finish (3.90µin thickness) and a contact length of 6.70mm.
The insulator is molded from green polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The connector is rated for 5A current and operates over a temperature range of -65°C to 105°C. The push-pull fastening type allows easy mating and unmating.
This header is suitable for board-to-board or cable-to-board applications where a right-angle connection is required. The breakaway design allows the user to customize the number of positions by snapping off sections. All 12 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.23 | $2.23 |
| 10+ | $1.90 | $1.90 |
| 25+ | $1.88 | $1.88 |
| 100+ | $1.61 | $1.61 |
| 500+ | $1.43 | $1.43 |
| 1,000+ | $1.37 | $1.37 |
| 2,500+ | $1.25 | $1.25 |
| 5,000+ | $1.22 | $1.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 12 positions in 2 rows, all positions loaded.
The current rating is 5A.
Through hole, right angle.
-65°C to 105°C.
Brass contacts with tin finish, 3.90µin (0.099µm) thickness.
The database indicates RoHS3 compliance, but this is unverified.
