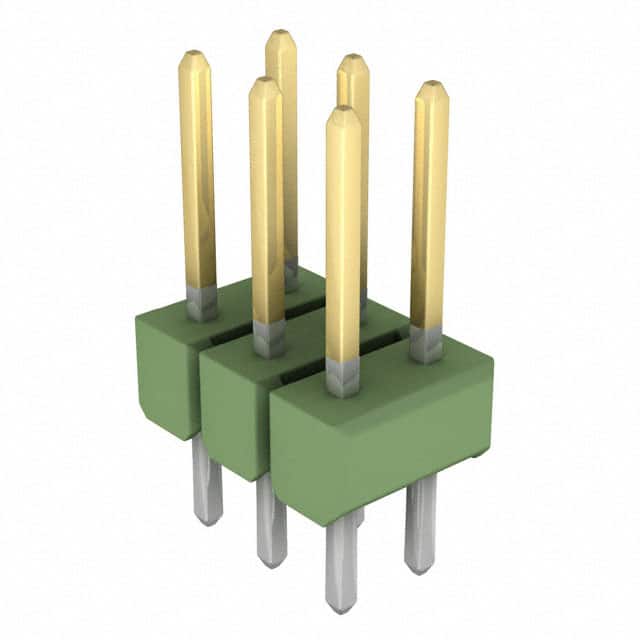

The TE Connectivity 826632-3 is an AMPMODU II breakaway pin header designed for board-to-board or cable-to-board interconnections. It features 6 male pin contacts arranged in 2 rows with a standard 2.54mm pitch and row spacing. The unshrouded, push-pull fastening design allows easy mating and unmating.
This header is rated for 5A current and operates over a temperature range of -65°C to 105°C. The insulator is molded from green polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. Contacts are made of brass with a tin finish (0.099µm thickness) and have a square pin shape.
The through-hole mounting with solder termination provides a reliable mechanical and electrical connection to the PCB. The overall contact length is 12.70mm, with a mating pin length of 6.70mm and an insulation height of 2.79mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 10+ | $0.89 | $0.89 |
| 25+ | $0.84 | $0.84 |
| 100+ | $0.79 | $0.79 |
| 250+ | $0.78 | $0.78 |
| 500+ | $0.71 | $0.71 |
| 1,008+ | $0.67 | $0.67 |
| 2,016+ | $0.64 | $0.64 |
| 5,040+ | $0.58 | $0.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 826632-3 has 6 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 5A.
The mounting type is through hole with solder termination.
The operating temperature range is -65°C to 105°C.
The contact finish is tin with a thickness of 0.099µm (3.90µin). Note: a PCN indicates a change to Pd Ni + gold flash; the tin value may be outdated.
