| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,918 pcs
|
18918 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

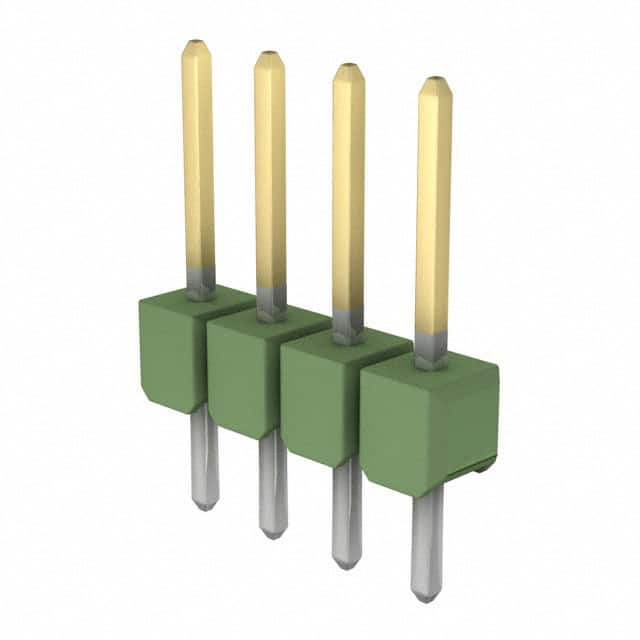

The 826629-4 is a through-hole unshrouded breakaway pin header from TE Connectivity's AMPMODU II family. It features 4 male square pins arranged in a single row with a standard 2.54mm pitch. The contacts are made of brass with a tin finish of 3.90 microinches overall contact length of 0.500 inches and a contact length of 6.70mm.
The header is rated for a current of 5A and operates over a temperature range from -65°C to 105°C. The green insulator is made from Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating. This component is suitable for board-to-board or cable connections and employs a push-pull fastening mechanism.
The part is designed for manual or wave soldering. It is RoHS3 compliant and has an MSL rating of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.56 | $0.56 |
| 10+ | $0.48 | $0.48 |
| 25+ | $0.46 | $0.46 |
| 100+ | $0.36 | $0.36 |
| 250+ | $0.33 | $0.33 |
| 1,000+ | $0.30 | $0.30 |
| 3,000+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 4 positions in a single row.
The current rating is 5A.
Through hole with solder termination.
-65°C to 105°C.
No, it is unshrouded.
Brass contacts with tin finish, green PBT insulator (UL94 V-0).
