| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish (Minimum) | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

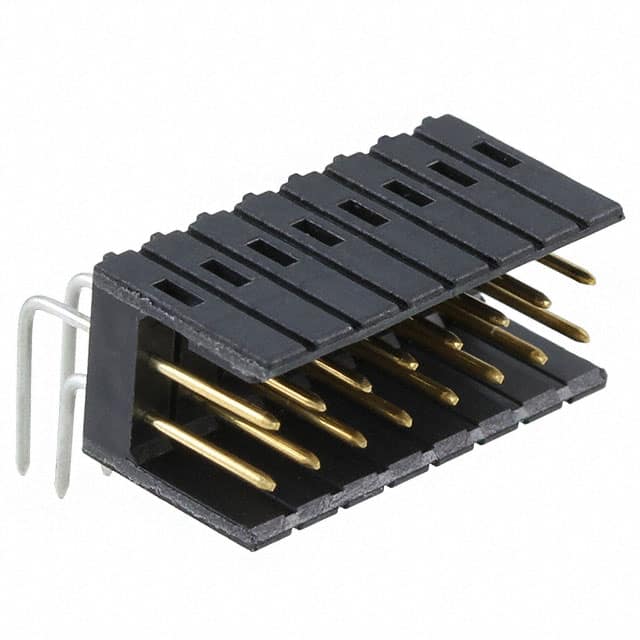

The 826470-8 is a 16-position, double-row, right-angle, shrouded header from TE Connectivity's AMPMODU II series. It features male square pins with a 2.54mm pitch and row spacing. The header is through-hole mounted with solder termination. The housing is black glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) rated UL94 V-0. The contacts are phosphor bronze with Plating A: gold (0.1µm) over palladium (0.7µm) over nickel (1.27µm) in the contact zone, and tin (2.0µm min.) over nickel in the soldering zone. The header includes a latch holder for secure mating. Operating temperature range is -55°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1,800+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 16 positions in a double-row configuration (2 rows).
The pitch is 2.54mm (0.100") with the same row spacing.
Through hole, right angle mounting with solder termination.
Yes, it has a 2-wall shroud.
-55°C to 105°C.
