| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
102 pcs
|
102 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Halogen Content | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

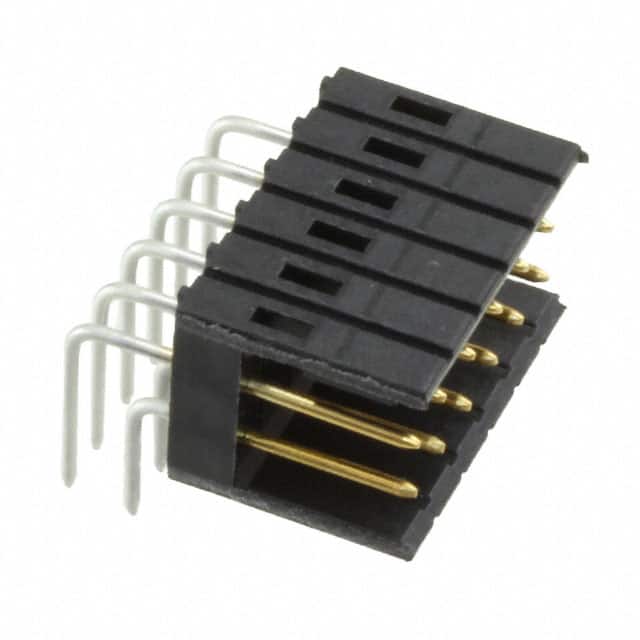

The TE Connectivity 826470-6 is a MOD II shrouded header connector with 12 positions arranged in 2 rows. It features a 2.54mm (0.100") pitch and an industry-standard 2.54mm row spacing. The connector is configured for through-hole, right-angle mounting with solder termination, making it suitable for PCB applications requiring a compact, low-profile interconnect.
This header is part of TE's MOD II series and is designed for reliable performance in a variety of electronic assemblies. It is pin-in-paste capable to 260°C, supporting both traditional soldering and reflow processes. The product is compliant with EU RoHS, EU ELV, China RoHS, and REACH regulations, and does not contain low halogen materials (Br or Cl > 900 ppm).
With a moisture sensitivity level of MSL 1 (unlimited), the 826470-6 is robust for storage and handling. The connector's shrouded design provides mechanical protection and helps ensure proper alignment during mating. Its right-angle orientation allows for efficient use of board space, particularly in edge-mount or perpendicular connection scenarios.
| Qty | Low | High |
|---|---|---|
| 1,500+ | $2.40 | $2.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions.
2.54mm (0.100").
2 rows.
Through hole, right angle.
Yes, it is EU RoHS compliant.
MSL 1 (unlimited).
Not low halogen; contains Br or Cl > 900 ppm.
