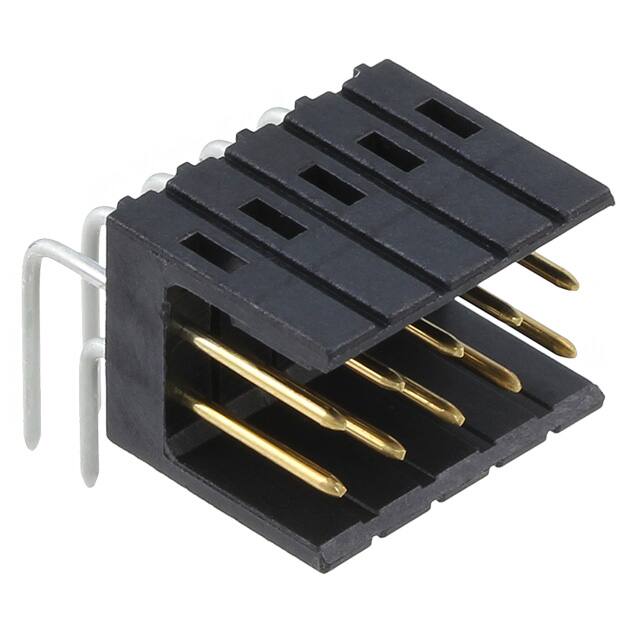

The TE Connectivity AMPMODU 826470-5 is a 10-position, 2-row, right-angle PCB mount header designed for board-to-board or cable applications. It features a 2.54mm pitch and row spacing, with a partially shrouded housing made of black PCT thermoplastic (UL94 V-0). The header uses round, gold-plated phosphor bronze pins rated for 5A current, with a mating pin diameter of 0.63mm and termination posts 3.2mm long.
Electrical characteristics include a dielectric withstanding voltage of 750 Vrms and insulation resistance of 5000 MΩ. The operating temperature range is -65 to 105°C. The connector is terminated via solder to a PCB with a recommended thickness of 1.57mm. A latch holder fastening type ensures secure mating.
This header is suitable for signal-level interconnections in industrial, automotive, and consumer electronics where a reliable, right-angle connection is required. The gold plating on the mating area (0.8µm) and tin on the termination area (3µm) provide good corrosion resistance and solderability.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.32 | $3.32 |
| 10+ | $2.83 | $2.83 |
| 100+ | $2.65 | $2.65 |
| 250+ | $2.63 | $2.63 |
| 500+ | $2.13 | $2.13 |
| 1,000+ | $1.99 | $1.99 |
| 5,000+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54 mm (0.100 inches).
It has 10 positions arranged in 2 rows.
The contact current rating is 5 A maximum.
It is a through-hole, right-angle mount.
The operating temperature range is -65 to 105 °C.
Contacts are phosphor bronze with gold plating on the mating area (0.8 µm) and tin on the termination area (3 µm).
RoHS3 compliance is claimed but unverified.
