| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
91 pcs
|
91 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

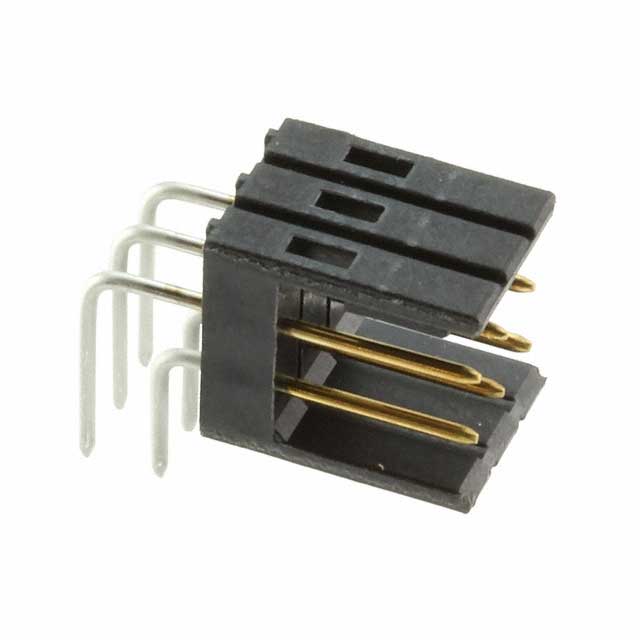

The TE Connectivity 826470-3 is a rectangular connector header designed for board-to-board or cable applications. It features 6 male pin contacts arranged in 2 rows with a 2.54mm pitch and row spacing. The connector is through hole mounted with a right angle orientation and terminated via solder.
The header is shrouded with a 2-wall design and includes a latch holder fastening type for secure mating. Contacts are made of phosphor bronze with a tin finish (3.90µin thickness) and have a square shape. The insulation is black polycyclohexylenedimethylene terephthalate (PCT), glass filled, rated UL94 V-0 for flammability. Operating temperature range is -55°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.78 | $2.78 |
| 10+ | $2.45 | $2.45 |
| 200+ | $1.98 | $1.98 |
| 600+ | $1.83 | $1.83 |
| 1,000+ | $1.65 | $1.65 |
| 2,600+ | $1.59 | $1.59 |
| 5,000+ | $1.53 | $1.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 826470-3 has 6 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
Through hole, right angle with solder termination.
-55°C to 105°C.
Phosphor bronze contacts with a tin finish (3.90µin / 0.099µm).
Yes, it has a shrouded 2-wall design with a latch holder fastening type.
UL94 V-0.
